CLUB3D Mini DisplayPort HDMI 2.0 Converter Black 10cm CAC-2170

Club 3D Mini DisplayPort ™ 1.2 To HDMI ™ 2.0 UHD Active Adapter

This CAC-2170 Model allows you to connect the Mini DisplayPort ™ 1.2 connector to a 4K UHD TV, monitor or projector with an HDMI ™ input with an HDMI ™ input. The Adapter from the Mini DisplayPort ™ 1.2 connector to the HDMI ™ 2.0 is equivalent to HDMI ™ 2.0 specification, providing 6Gbps TMDS data transfer speed per channel, offering a total of 18Gbps permeability.

Supported UHD resolution can be up to 4096x2160p @ 60Hz, which provides a clean and sharp picture. Supporting 60 frames/seconds allows a very smooth video or gameplay. The perfect solution for those who want to enjoy a 4K UHD/60 gaming experience, but have no native HDMI ™ 2.0 output.

Further features:
• DisplayPort ™ specification 1.2, 1.62GBPS, 2.7GBPS and 5.4GBPS/M Baking per Lane, Effective (video) bandwidth to 17.28Gbps
• HDMI ™ 2.0 specifications, 6Gbps per channel, total permeability 18Gbps
• HDCP 1.3 and HDCP 2.2-driven repetition
• 24-bit colort and 4: 4: 4 Color Sampling Support
• Inner YCBCR 4: 4: 4/4: 2: 2 YCBCR 4: 2: 0 to convert
• NVIDIA® MAXWELL CARDS AND INTEL® HD 5xxx series and new ones, not planned for older architectures
• Support: Windows 10, 8.1, Apple OS X

Input: Mini DisplayPort ™ 1.2 Male
Output: HDMI ™ 2.0 Female

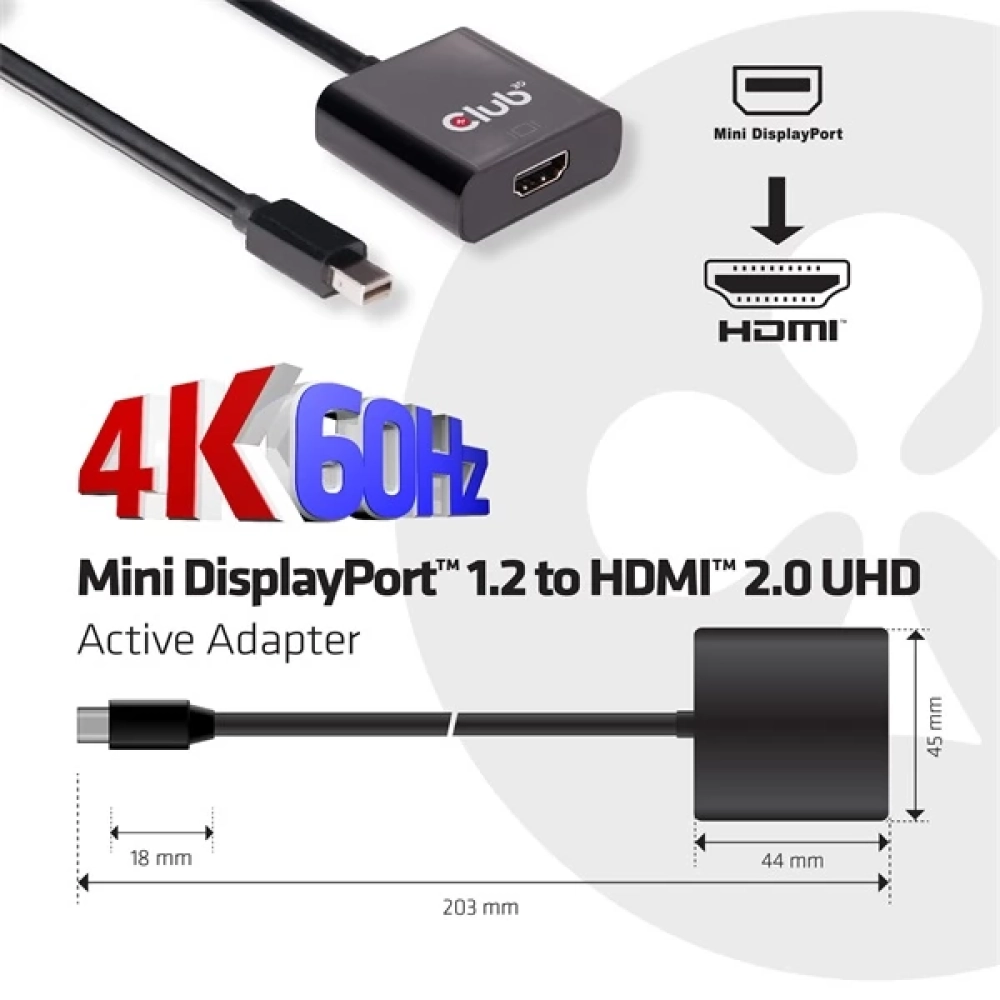

Product Dimensions: 20 x 4.5 x 1.5 cm
Product Weight: 25 g
