CLUB3D DVI-D USB 3.0 Type C Converter Silver 24cm CAC-1510-A

USB3.2 GEN1 Type-C-Dual Link DVI-D HDCP OFF Version Active M/F Adapter Apple for Cinema Displays

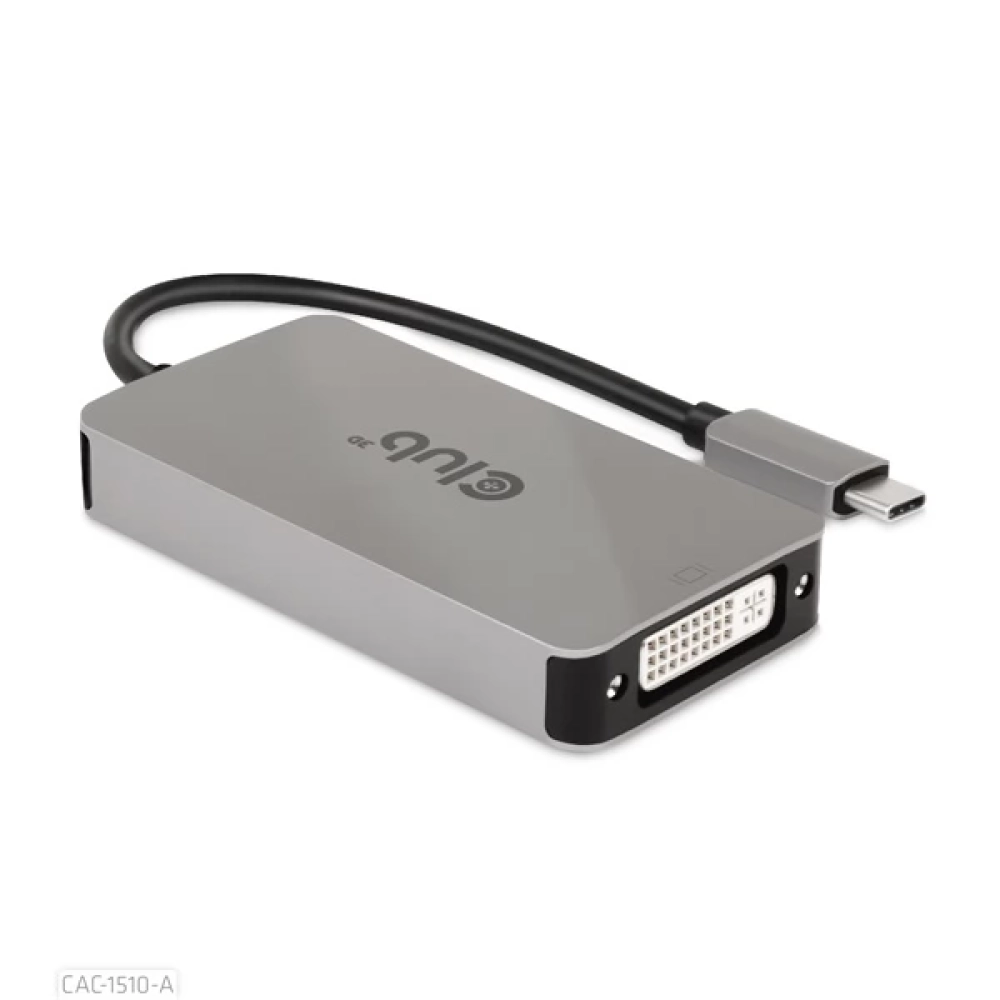

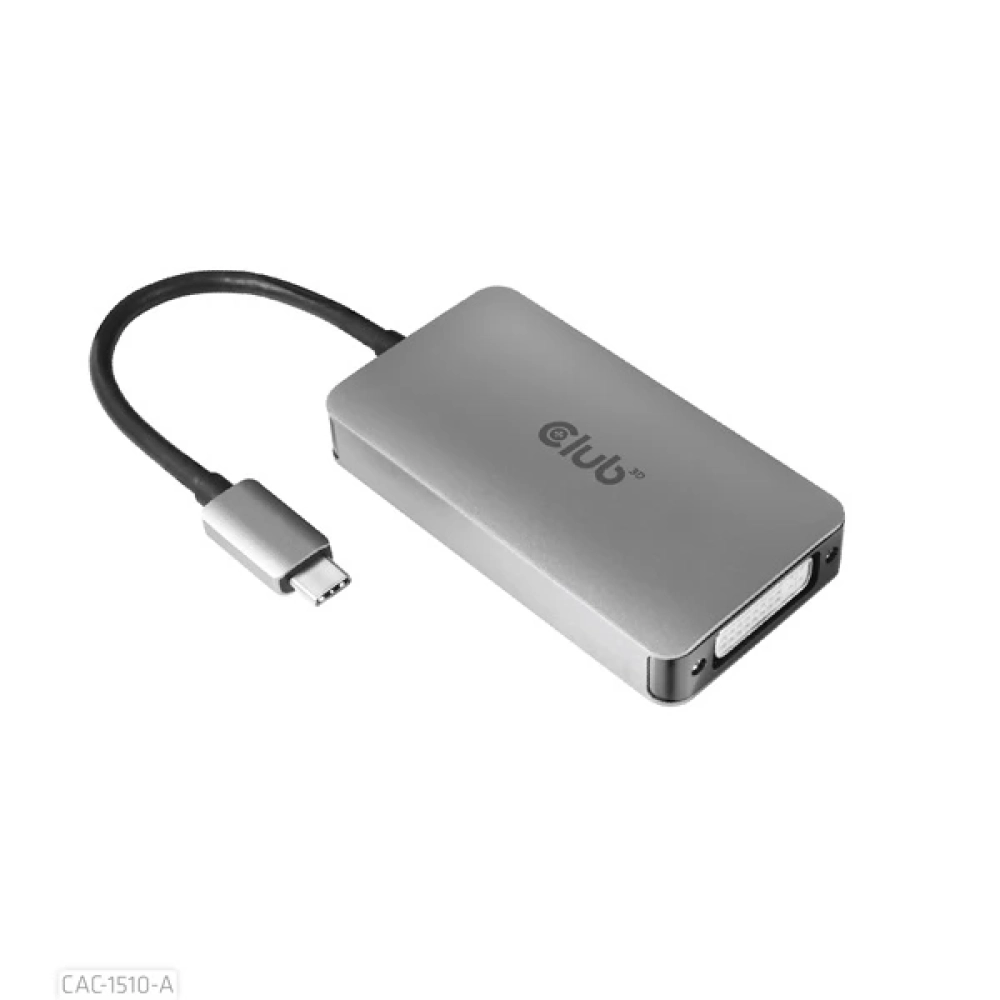

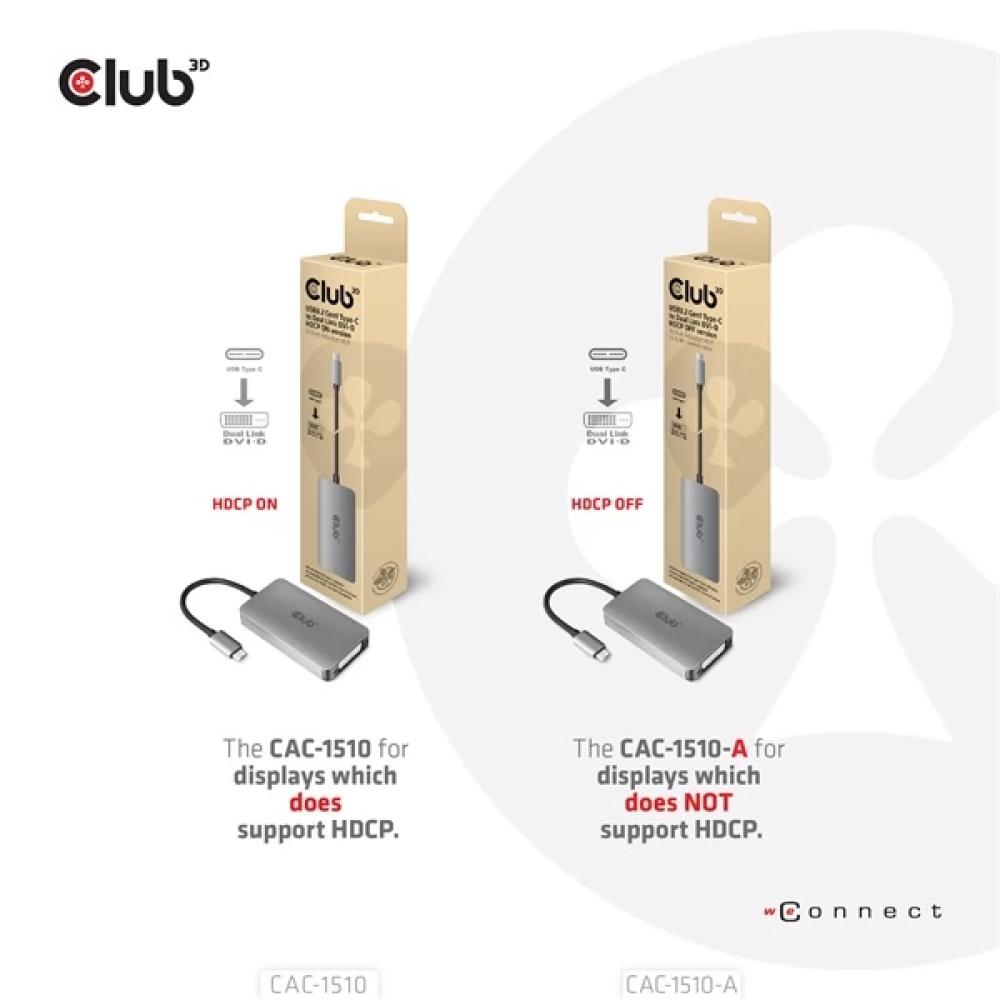

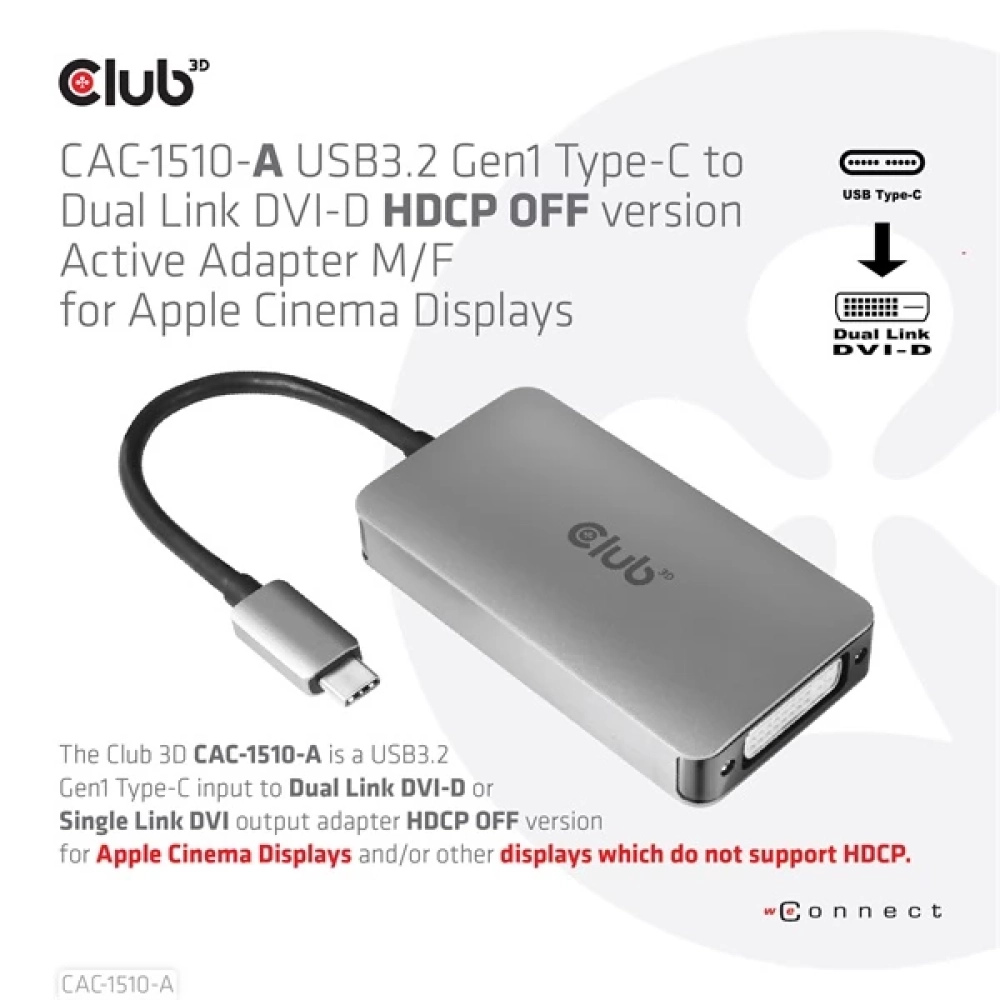

Club 3D CAC-1510 is a USB3.2 Gen1 Type-C Input to the Dual Link DVI or Single Link DVI Output Adapter HDCP OFF version for Apple Cinema Display or other display that does not support HDCP.

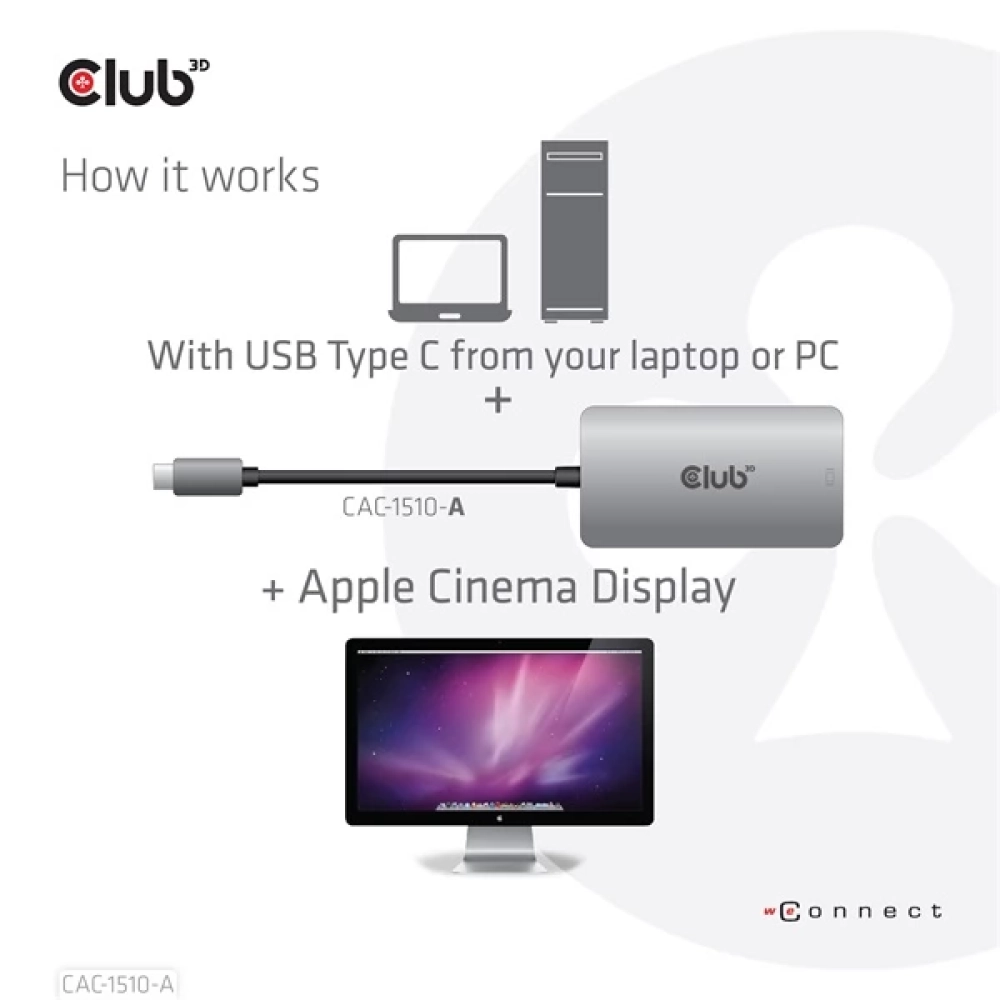

The USB3.2 Gen1 Type-C-Dual Link DVI or Single Link DVI Adapter is the simplest solution for connecting USB3.2 Gen1 Type-C source device to DVI-compatible monitor or projector with an alternative mode.
This adapter is compact and extremely portable. The USB C port adapter does not require external power and is ideal for the latest notebooks and ultrabooks.

Supported by: Dual Link DVI-D largest resolution at 3840 x 2160 30 Hz.
Supported: Deep Color 12 bit
Supported: 268.5 MHz

Compatibility
Compatible with the new Apple MacBook Pro, MacBook and other USB3.2 GEN1 Type C, which support DisplayPort ™ alternative mode via USB C.

To check the specifications and operation of USB3.2 Gen1 Type-C port, review your device's user manual.

Technical data
Product Name:
USB3.2 GEN1 Type-C-Dual Link DVI-D HDCP OFF Version Active M/F Adapter Apple for Cinema Displays
Product series: adapters
Product code: CAC-1510-A
EAN Code: 8719214471651
UPC code: 841615101863
Features:
• Special support for Apple Cinema Display
• Reversible USB Type-C connector
• Compatible with Dual Link DVI-D specifications

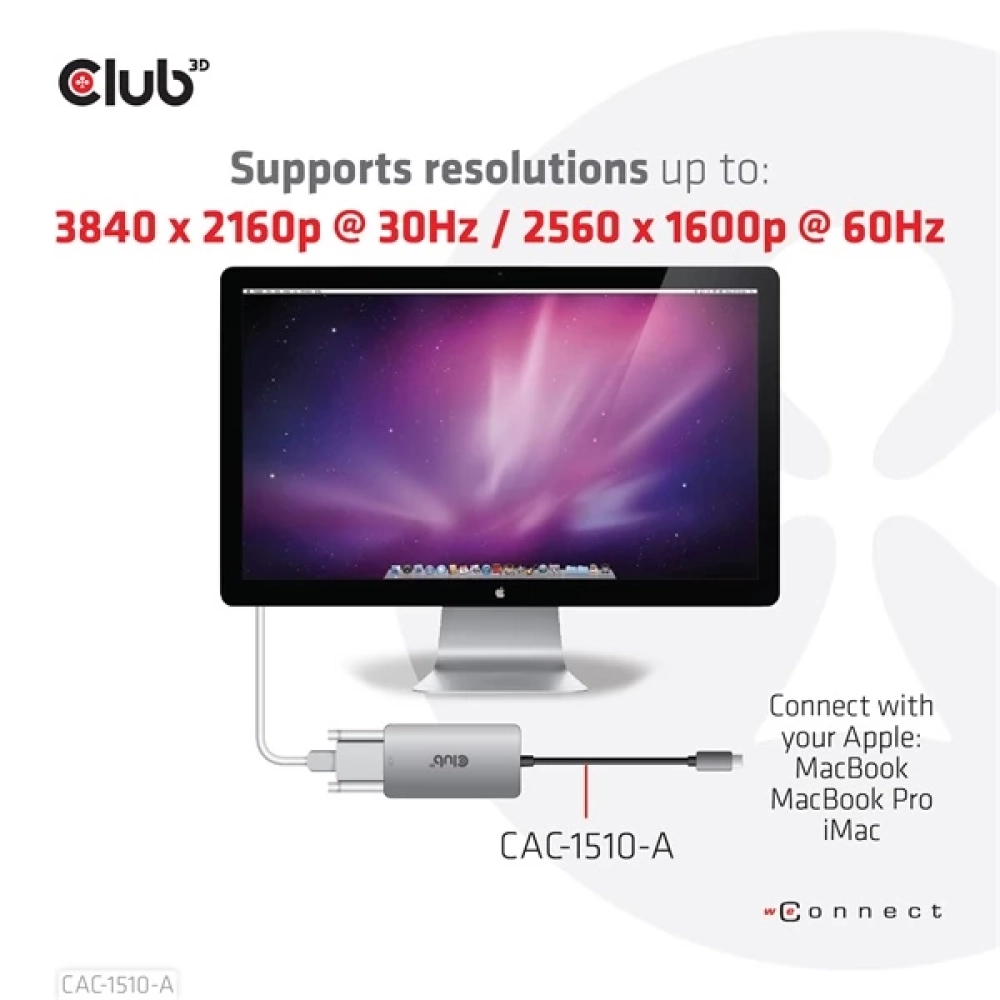

• Supports 3840 x 2160p @ 30 Hz resolution
• Supports 2560 x 1600p @ 60Hz resolution
• Supports 12 -bit deep color
• Supports 268.5 MHz bandwidth
Interfaces available
Input:
• Type C USB connector
Output:
• DVI-D Dual Link Female
OS Support:
• all
In the box:

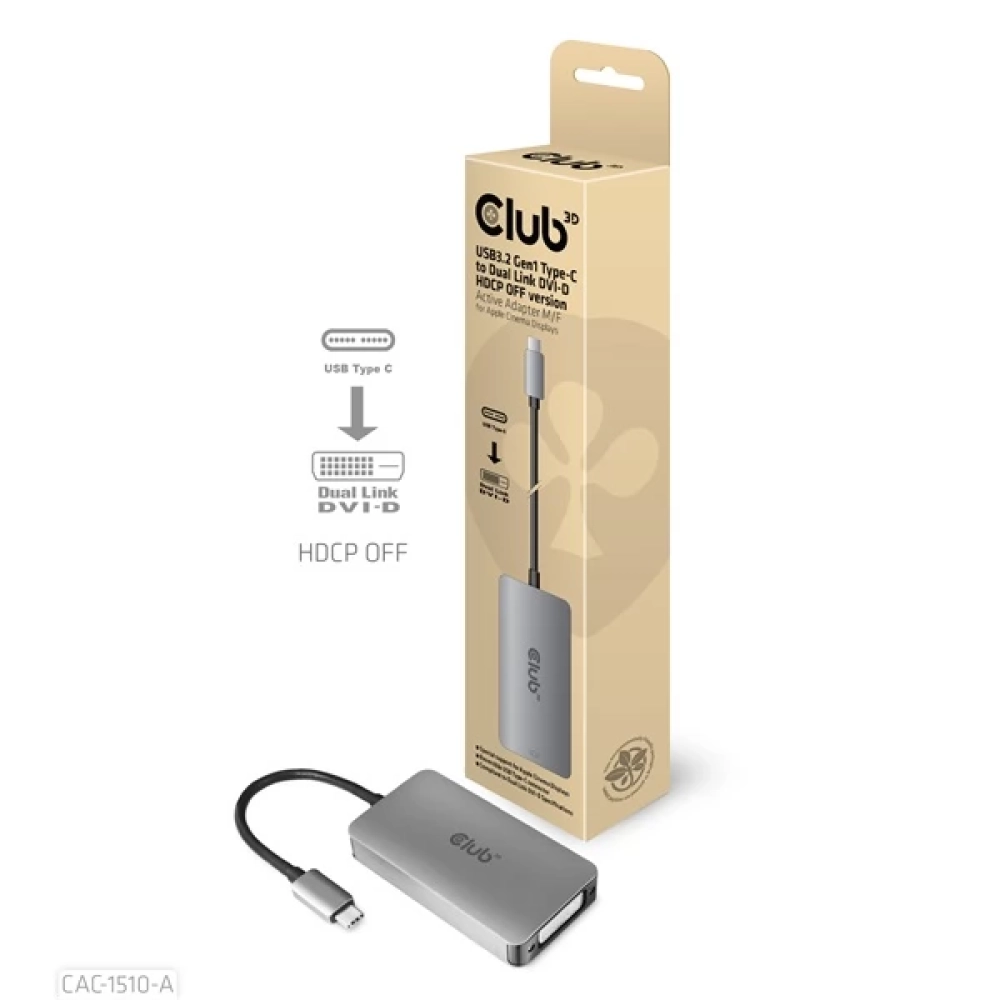

• Club 3D usb3.2 Gen1 Type-C and Dual Link DVI-D HDCP Off Version Apple Cinema Displays Active Adapter
Other information:

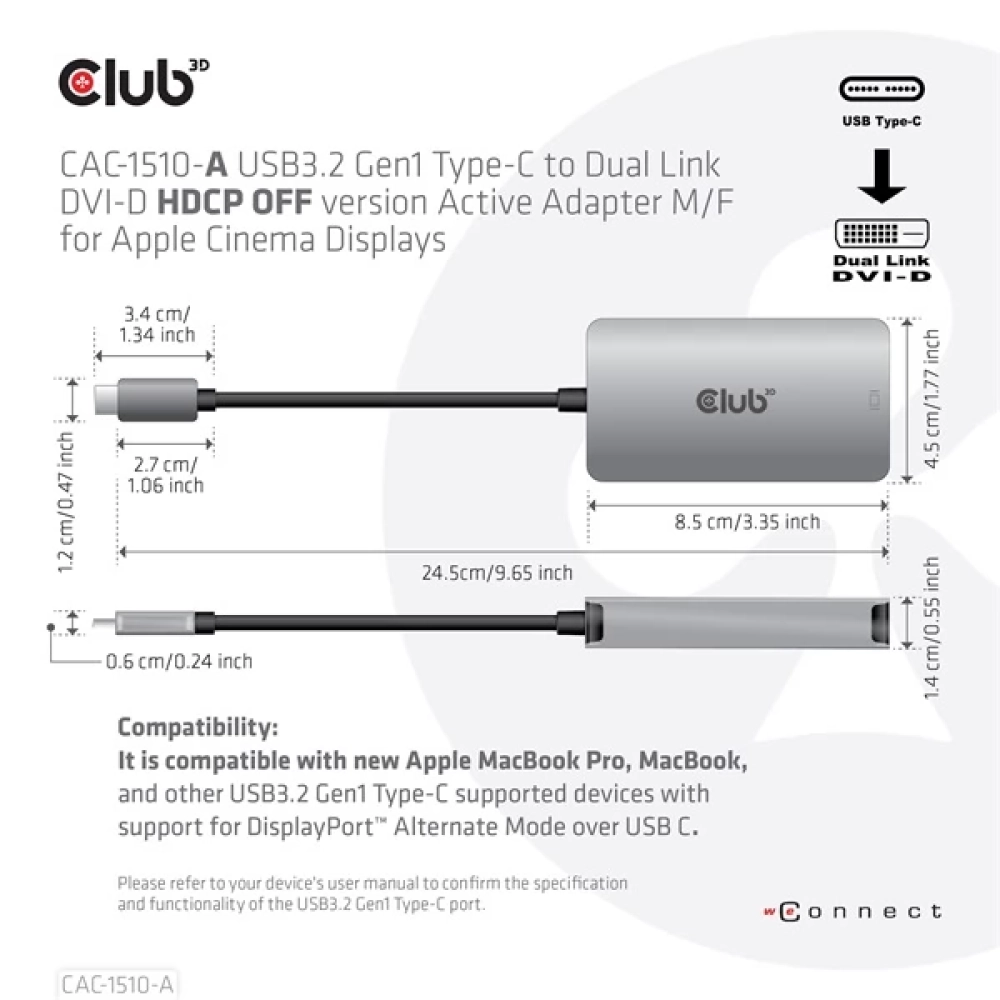

• Box size: 6 x 24 x 3.5 cm / 2.36 x 9.45 x 1.38 inches
• Size of the device: 8.5 x 4.5 x 1.4 cm/ 3.35 x 1.77 x 0.55 inches
• Approximate length: 24.5 cm / 9.65 "
• USB-C connector dimensions: 3.4 x 1.2 x 0.6 cm/ 1.34 x 0.47 x 0.24 inches
• Device Weight: 66 GR / 2.32 ounces
• Box weight: 28 gr / 0.99 ounces
• LDPE bag weight: 2 gr / 0.07 oz
• Total weight: 96 gr / 3.39 ounces
• meets Rohs, FCC and CE EMI requirements
