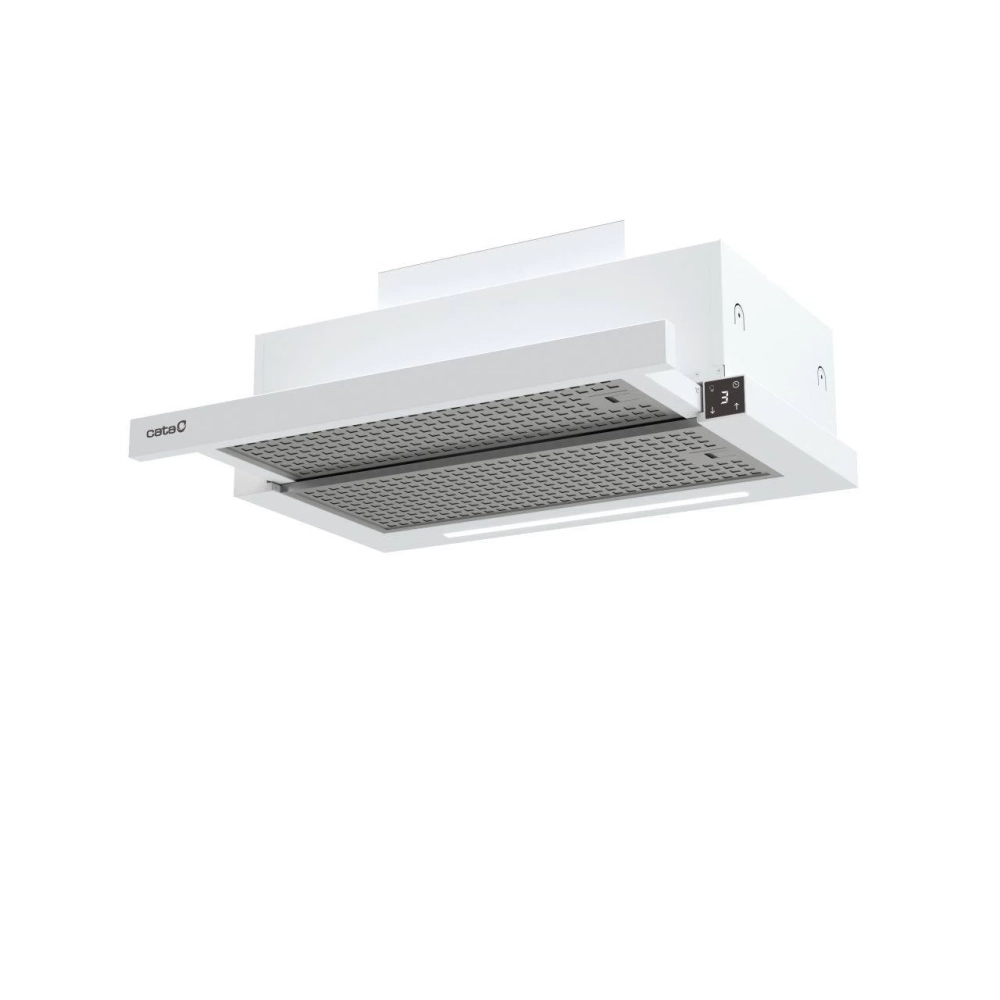

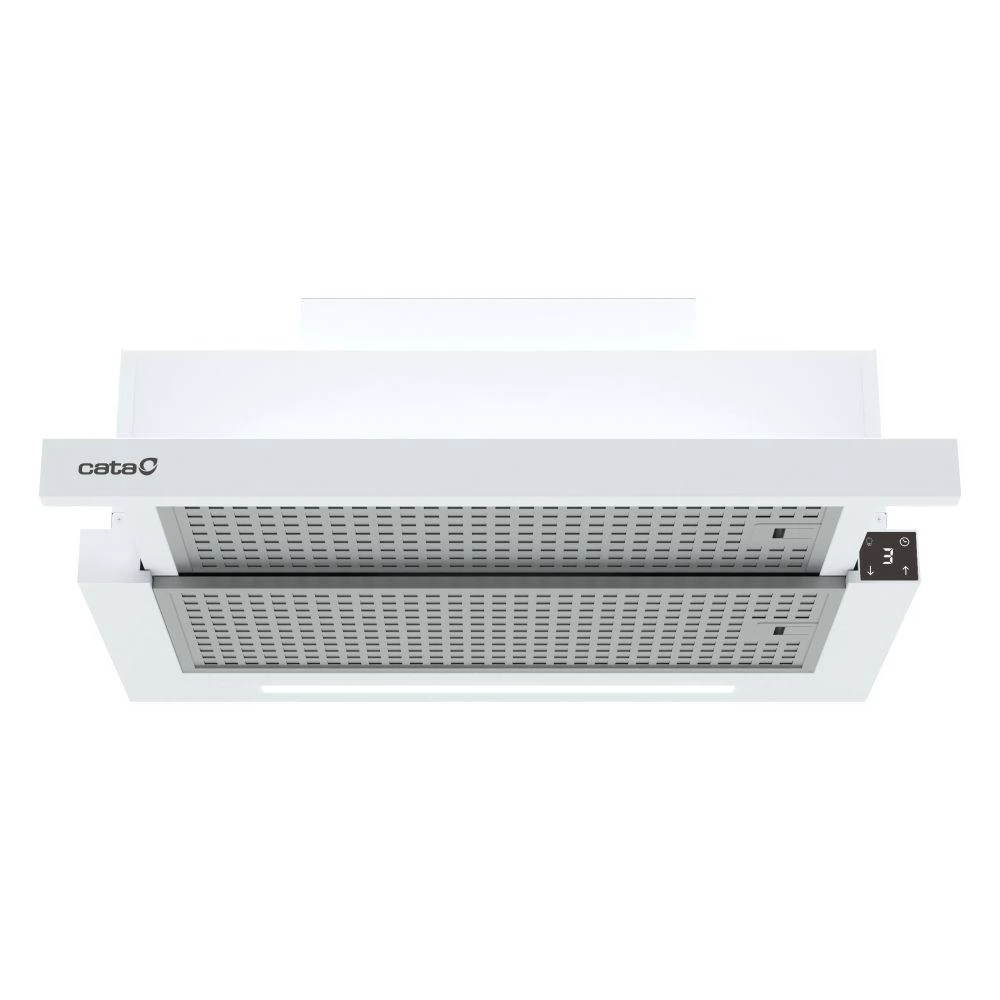

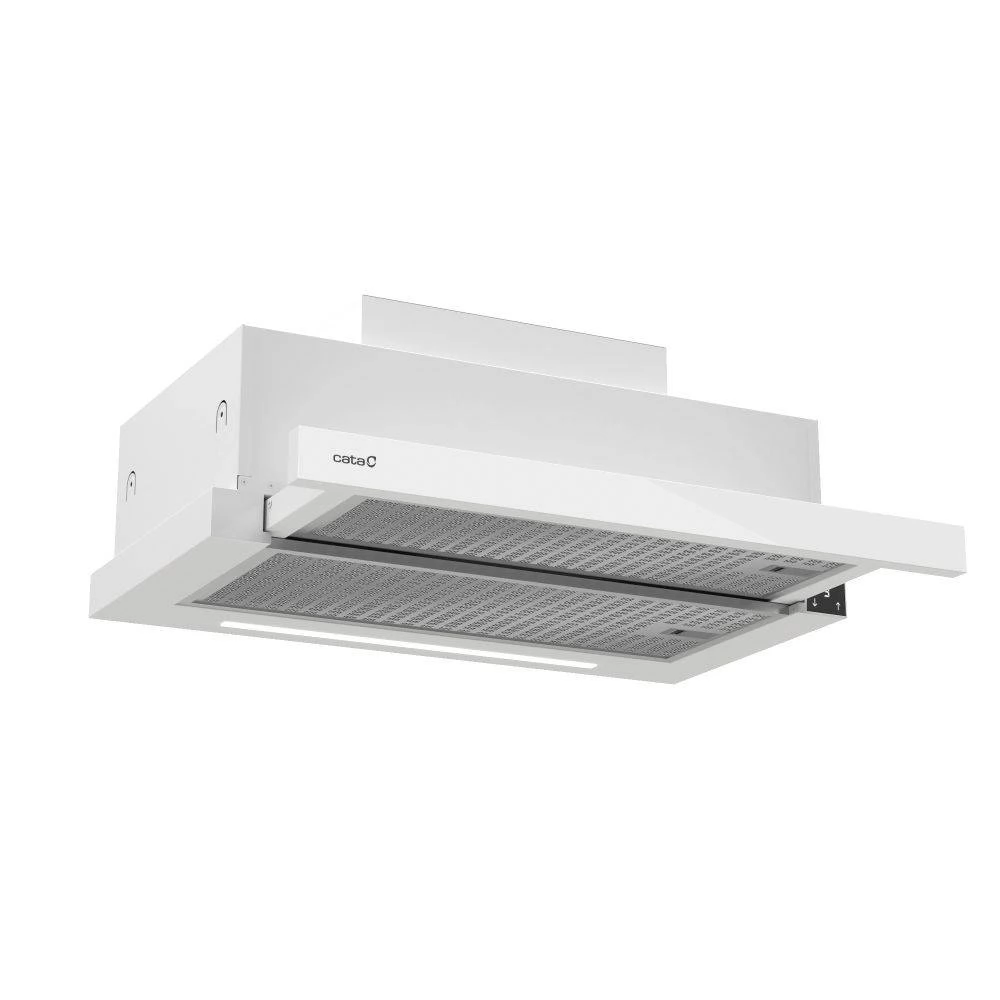

CATA TFH-6830/A GWH Dehumidifier LED brushless White

The Cata TFH-6830 is designed to have extra power at low power consumption. The device is available at 60 cm wide, in 3 colors. This model is equipped with a so -called "Brushless" engine, one of the main features of which is high power (1200 m3/h) with low power consumption, making energy classification A +++ and consumption 16 kW/year. The hood is extremely quiet thanks to the Brushless engine.

Brushless

The DC engine without a carbon brush, also known as electronically communized engine, feeds on an inverter from a DC that generates alternating current to drive each phase through the closed loop controller. This provides power pulses for engine coils that control speed and torque. Essentially, engines without a coal brush typically contain a permanent magnetic field that rotates around an electronically controlled fixed aroma and replaces the physical carbon brushes and the commutator parts.

Without friction caused by carbon brushes, Brushless motors require minimal periodic maintenance, which allows them to be held in a closed house, reducing the entry of external powder and particles into the engine compartment, which can endanger moving parts. Motors without carbon brushes show more power and lower energy consumption than their coal brush counterparts.

Benefits of Brushless Motor:

- The engine is quieter as it is less in contact with moving parts
- higher power and efficiency (higher torque/watt ratio)
- more accurate electronic control
- Longer life/reliability (no wear as there are no coal brushes)
- Smaller engine warming (no friction Since there are no coal brushes)

Free outlet mode

If the air goes out into the outdoors through a pipeline (that is, used in an exit mode), it must be connected to a 150 mm diameter opening using the pipe bump. It is forbidden to introduce it into channels and chimneys used for combustion products! Make sure that when the hood and other non -electric stove or stove operates at the same time, there is a sufficient amount of air supply. For proper operation, air intake through doors, windows, or other air intracules.

Don't you have the opportunity to drain the air outside the building?

The extractor can be used not only in air-expulsion but also in internal circulation mode, so that the exhausted air passes through the active coal-filter behind the fat filter, which filters out the unpleasant odors and then the air returns to the kitchen. In this case, the air transport capacity is reduced to some extent depending on the condition (saturation) of the coal filter. You can find a further description below the coal filter, which is optionally ordered.

Universal installation

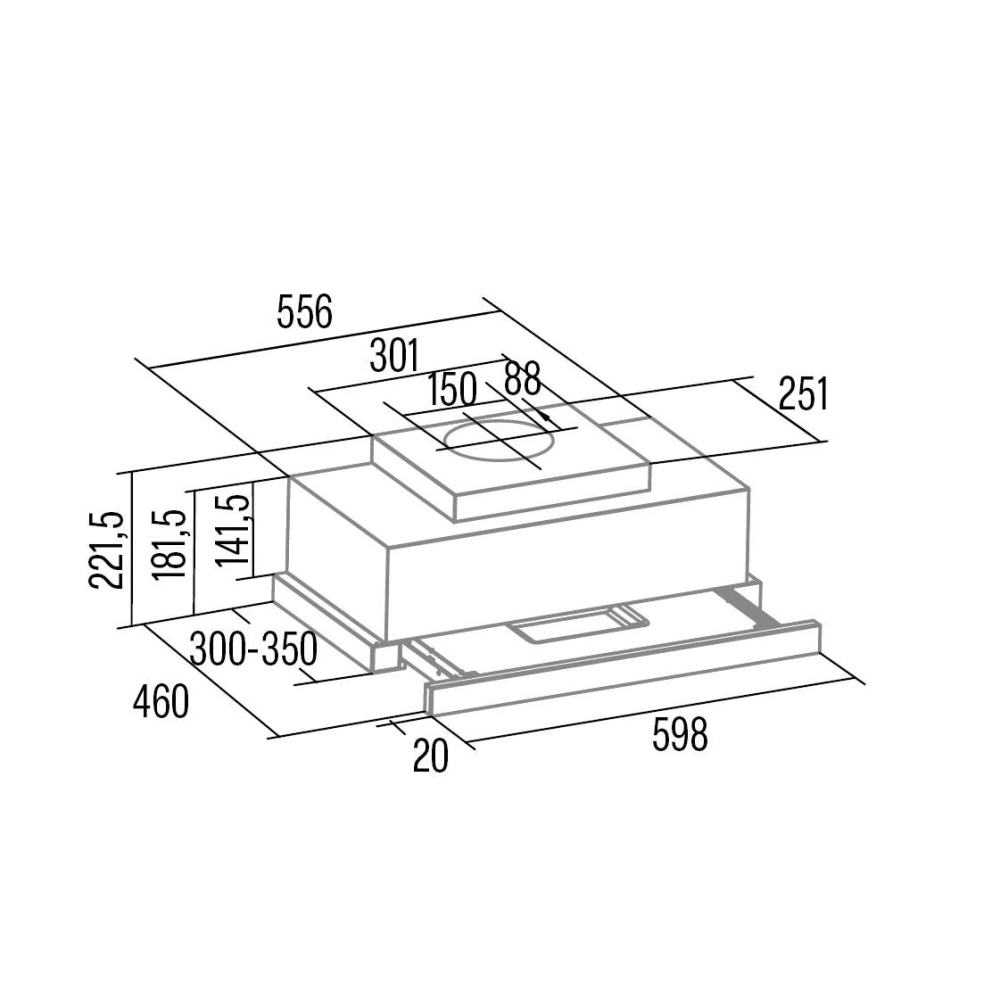

Multiple installation options with the mounting points on the exhaust and an adjustable depth front (280-330 mm).

1. Fixing to top shelf.
2. Fixing to the side of the cabinet
3. Fixing to the back wall of the cabinet

Other features:

- Number of degrees: 5+1 (turbo)
- Form, design: telescopic
- Min. Cabinet Size: 60 cm
- Width: 60 cm
- Color: white glass
- Control: touch control
- Number of motors: 1
- Air transport: 1200/795 m3/hour
- Noise level: 46-69 (db/A)
- Pressure value: 251 PA
- post -ventilation: yes
- Extra property: brushless engine
- Lighting: 1x3w LED ribbon
- pipe connection
- Suggested 150 / min. 125 mm
- Extra quiet: yes
- Energy Class: A +++
