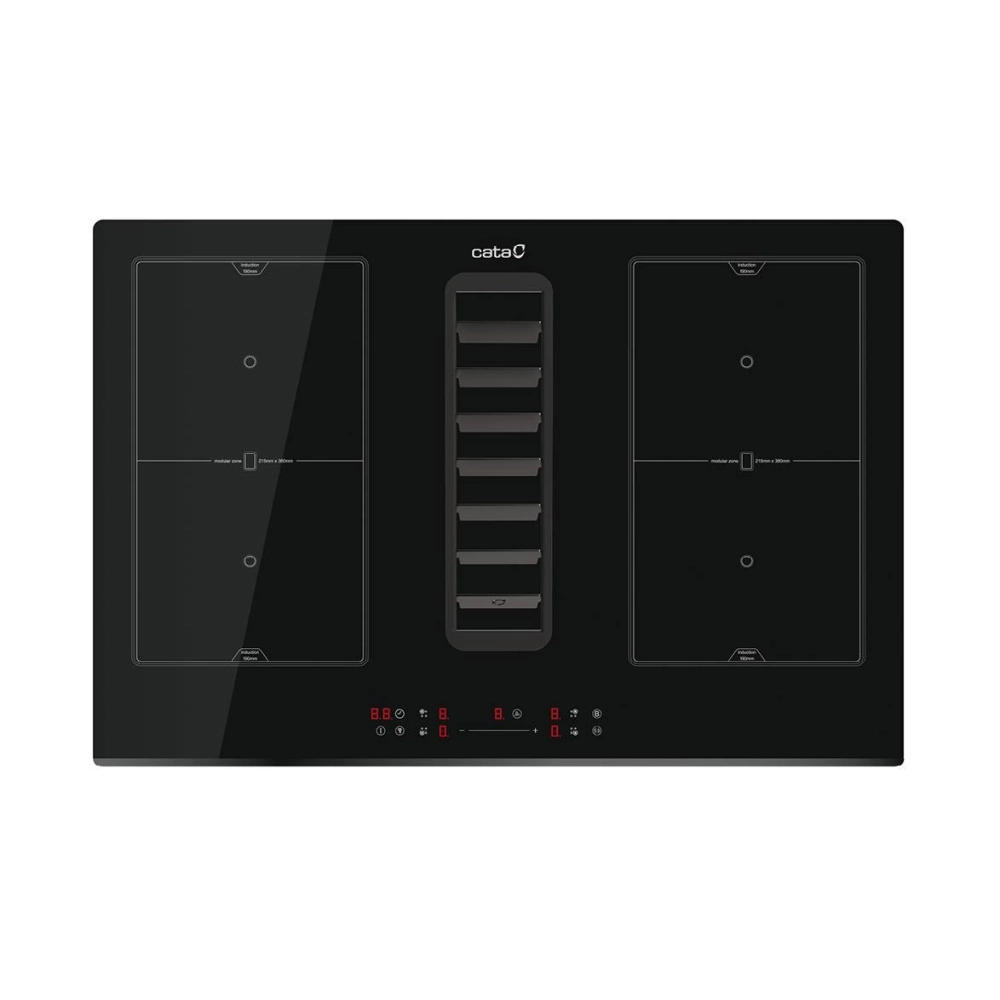

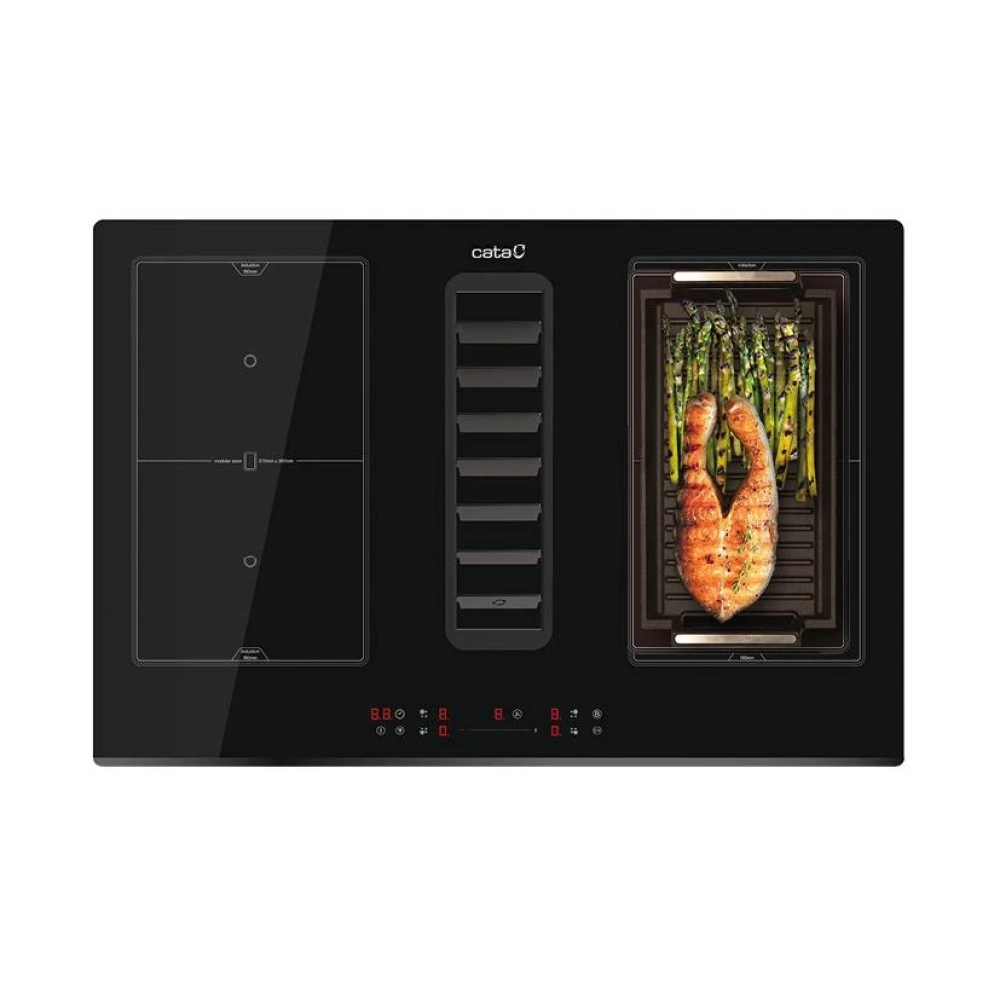

CATA IAS-7024 FLOW-IN Hot plate induction mounted exhaust

Cata continues to consider continuous technical improvements, so it created the exhaust with the IAS-6024 flow-in induction ceramic base. The company combined G4 induction technology with the high -performance Brushless engine they use. All four cooking zones with induction technology have a booster function.

Flow-in technology benefits:

Compact size

It is only a 17 cm installation height so that the entire drawer depth can be utilized for rear outlet.

Removable and regenerative filters

The ceramic filter used for internal circulation is easy to remove and regenerate in 1 hour, then reinstated and can be used for up to 3-5 years due to regeneration.

Liquid collection tank

An easy -to -remove liquid collection tank that can be cleaned in a dishwasher.

Modular (flex) induction zone

So -called bridge, ie connected square cooking zones for cooking on a larger surface. Eg: 2 pcs 210x200 mm or 1 210x400 mm cooking zone.

G4 induction technology

Continuous and steady performance with an average consumption of only 0.7 kW.

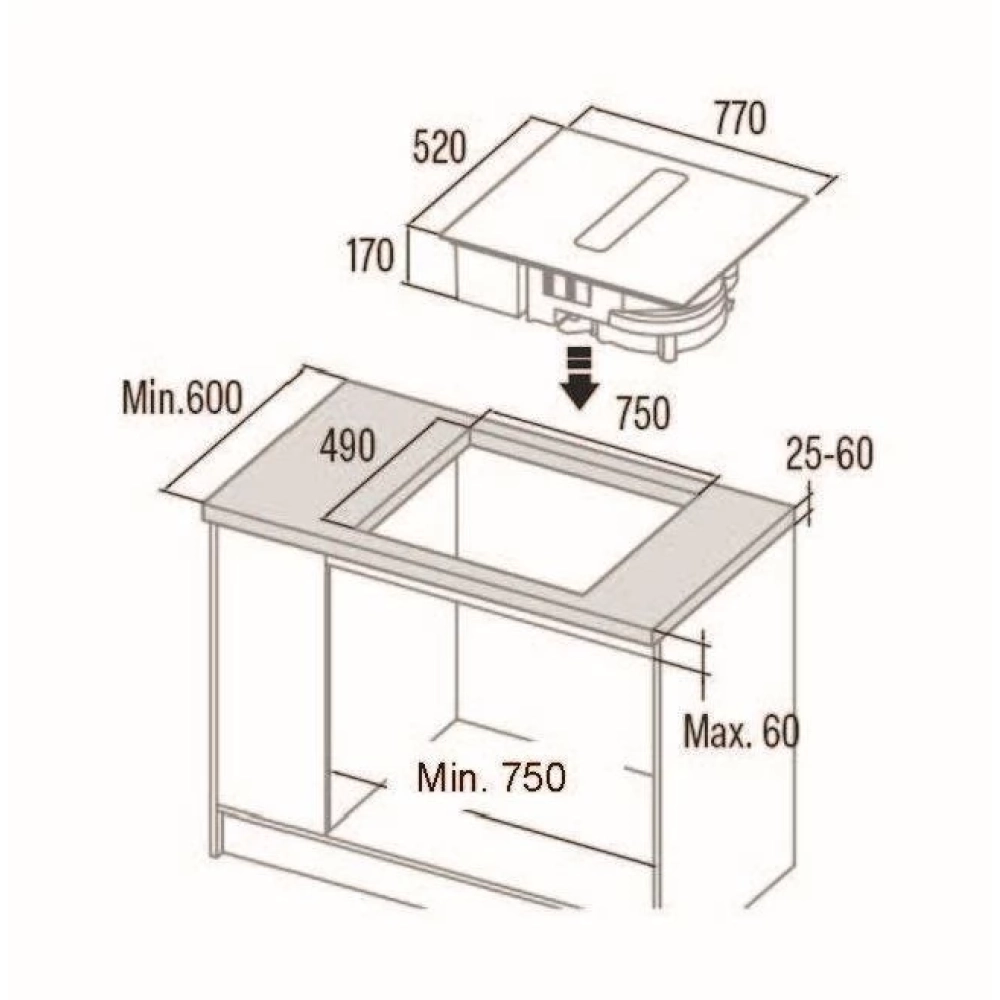

Maximum flexibility during installation

Different installation modes, either in the case of internal circulation or outlet.

The Cata IAS-7024 Induction Ceramic Fund Unique Properties:
77 cm wide, 4 pcs 21.5 x 19 cm or 2 21.5 x 38 cm modular cooking zone, SLider touch control with off time and filter cleaning display, 9 steps + booster function for all zones, child lock, timer, residual heat, automatic disk, automatic vessel detection, automatic vessel. Holding, steaming), continuous power control, maximum power: 7.4 kW

Residual hero

A warning signal that illuminates until that cooking zone cools down.

Timer
This feature allows the user to set the cooking time on different zones. When the set time is up, the hob will turn off in the escape of a beep.

Automatic off

Turn off the hob after 20 seconds after inactivation.

Booster

A feature is intended to increase the performance of the selected cooking zone. Thus, it boils more, faster.

Unique properties of vapor hood:

Air transport data: 691 m3/h, touch control, 5+1 turbo gear, noise level: 50 - 74 pcs (A), air sewing speed: 10 m/s, brushless engine, energy class: A+, pipe connection: 220x90 mm, maximum energy consumption: 165W

This kitchen vapor and smell extraction brushless uses motorcycle technology, which means:

- The engine is quieter as it is less in contact with moving parts
- higher power and efficiency (higher torque/watt ratio)
- more accurate electronic control
- Longer life/reliability (no wear as there are no coal brushes)
- Smaller engine warming (no friction Since there are no coal brushes)

The DC engine without a carbon brush, also known as electronically communized engine, feeds on an inverter from a DC that generates alternating current to drive each phase through the closed loop controller. This provides power pulses for engine coils that control speed and torque. Essentially, engines without a coal brush typically contain a permanent magnetic field that rotates around an electronically controlled fixed aroma and replaces the physical carbon brushes and the commutator parts.

Without friction caused by carbon brushes, Brushless motors require minimal periodic maintenance, which allows them to be held in a closed house, reducing the entry of external powder and particles into the engine compartment, which can endanger moving parts. Motors without carbon brushes show more power and lower energy consumption than their coal brush counterparts.

Other features:

- can be mounted on a worksheet
- Width: 77 cm
- Min. Cabinet Size: 80 cm
- Control: touch control
- Number of degrees: 9
- Number of cooking zones: 4
- Size of cooking zones: 215x190 mm
- Flex induction zones: yes
- Booster function: Yes
- Max. Power: 7400 W
- Number of motors: 1
- Brushless engine: Yes
- Air transport: 245/692 m3/hour
- Noise level: 50-74 pcs (a)
- Pipe connection: 220x90 mm
- Rear outlet: 220x90 mm
- Color: black glass
- Energy Class: According to the+ / New Energy label: C
