The MegaRAID 9600 series is the third generation of Tri-Mode x8 and x16 NVMe/SAS/SATA adapters. Designed for the best possible performance of NVMe SSD-based storage systems, the 9600 family provides twice the bandwidth, more than 4 times the IOP, 25 times the write latency and 60 times the performance increase during rebuilds compared to the previous generation.

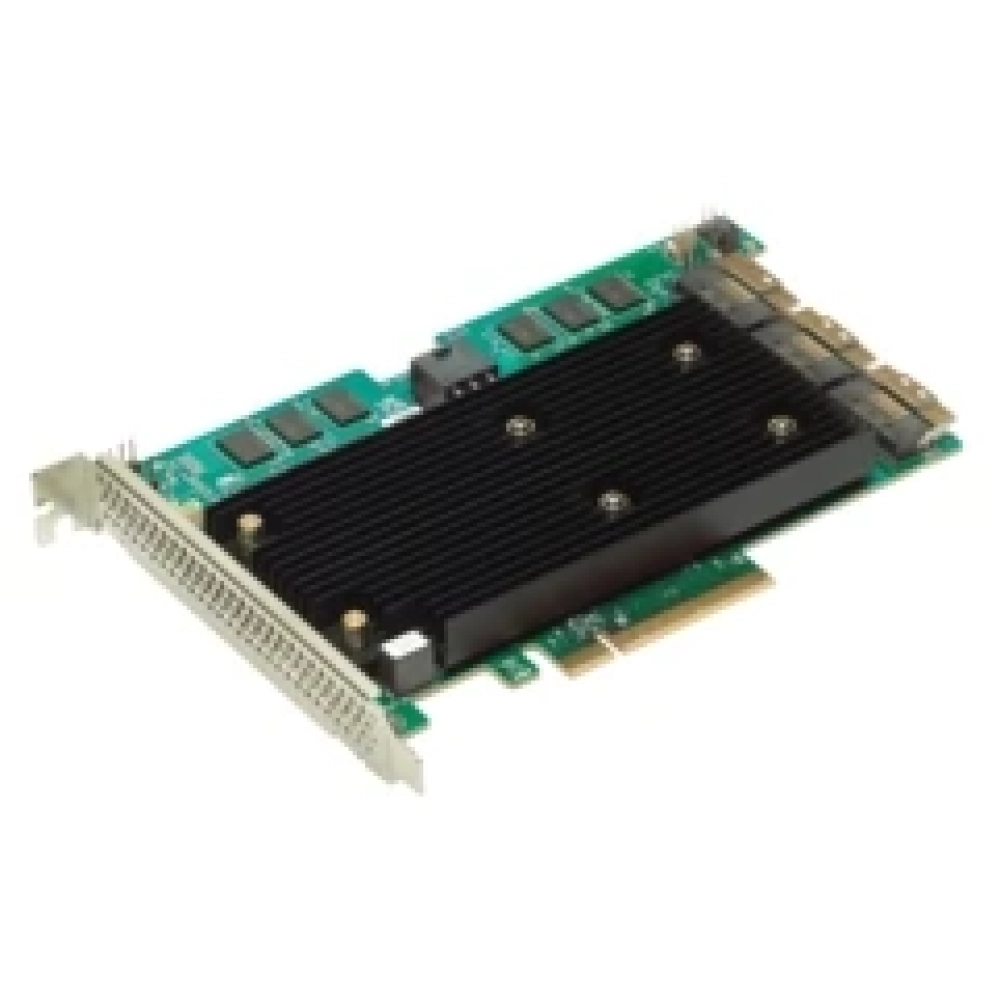

The SAS4124 RAID-on-Chip (RoC)-based MegaRAID 9670-24i adapter integrates a 2x72-bit high-speed DDR memory interface, which provides a faster speed of 3200 MT/s and more than four times the RAID5 random write IOP. previous generation adapters. Get the most flexibility out of your storage controller by directly connecting up to 24 Gen 4.0 NVMe, 24G SAS or SATA devices.

- Up to 240 SAS/SATA devices or 32 NVMe devices can be connected per controller
- SFF-8654 (SlimSAS) x8 connectors
- Form-friendly cable outlet
- Support for hardware secure boot and SPDM certification
- Supports mission-critical, high-bandwidth applications with PCIe 4.0 connectivity
- Balanced protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
- SFF-TA-1005 Universa Bay Management (UBM) is ready
- Provides additional protection and peace of mind with CacheVault flash cache protection
