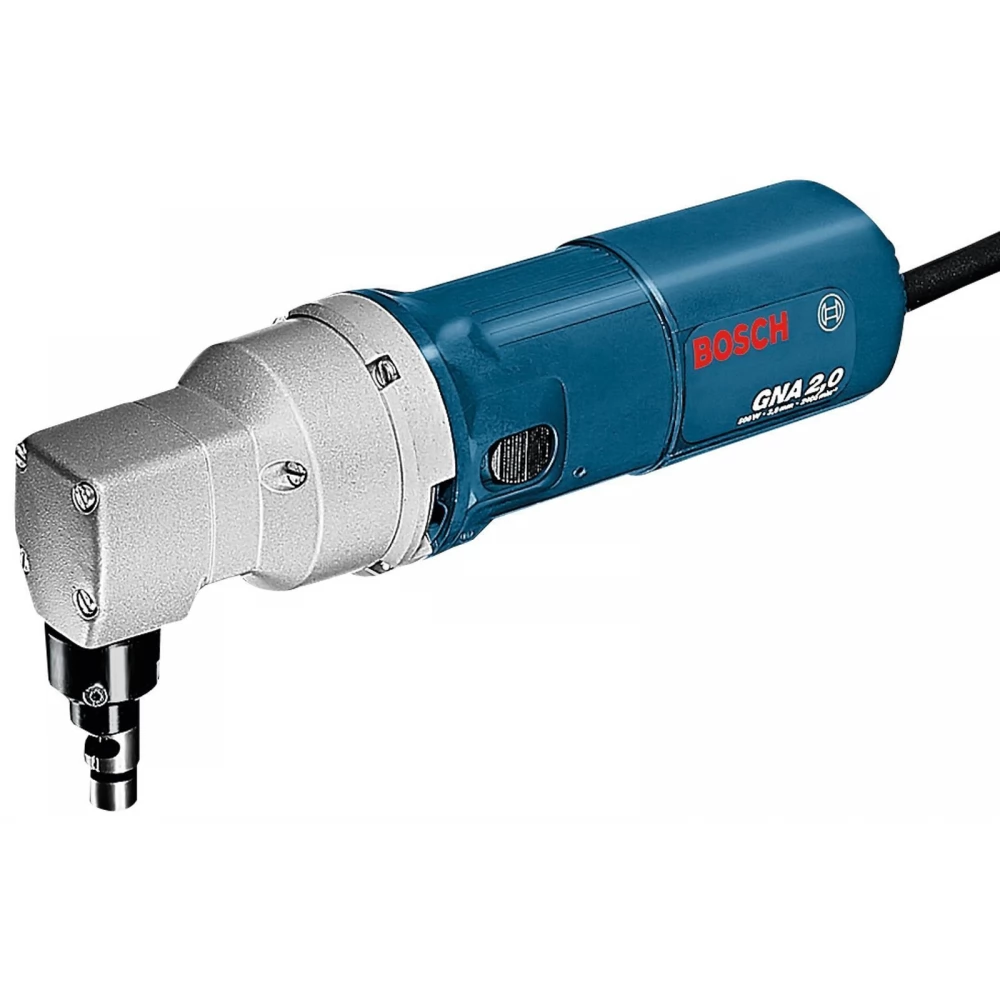

BOSCH GNA 2.0 Professional punch 500W
not available
Product description
500W professional electric punching machine designed for industrial and small industrial use.
Why choose this tool?
- Lockable pressure plate for straight cuts
- Simple work after pre-drawing and template
- For internal cutout
- Slim design for optimal handling
- Rotatable pressure plate for better access to corners
- Easily replaceable cutting tools
Specifications
- Workable material: Steel up to 400 N/mm² at 2.0 mm
- Cut mark width: 6 mm
- Pre-drilling for internal cutout: 16 mm
- Smallest radius: 3 mm
- Number of strokes, loaded: 1,500 strokes/min
- Number of strokes at idle: 2,400 strokes/min
- Length: 275 mm
- Height: 127 mm
- Max. cutting capacity, steel (400 N/mm²): 2 mm
- Max. cutting capacity, steel (600 N/mm²): 1.4 mm
- Max. cutting capacity, steel (800 N/mm²): 1 mm
- Max. cutting capacity, aluminum (200 N/mm²): 2.5 mm
Electrical characteristic values
- Nominal absorbed power: 500 W
- Delivered power: 270 W
- Vibration emission value ah: 11 m/s²
- Uncertainty K: 1.5 m/s²
