The optimum amount of air for all sizes of kitchen.

It doesn't matter if you have a kitchen and living room or a small, separate kitchen. We offer optimum air for every size kitchen. To ensure a evenly pleasant environment, the air should be replaced by 6 to 12 times an hour. To do this, the amount of air transport and the hood of the stove must be proportional to the volume of the room.

Minimal fat thanks to filters

Ventilation ducts and air circulation hoods require metal fat filters to filter fat and other solids from the cleaned air. In order for these filters to work with maximum efficiency, it must be cleaned at least once a month or in a dishwasher.

Power boost

Exit-The speed increases from 18 m3/min to 20 m3/min in 5 seconds.

Page Stocks-The speed increases from 17 m3/min to 19 m3/min in 5 seconds.

Other features:

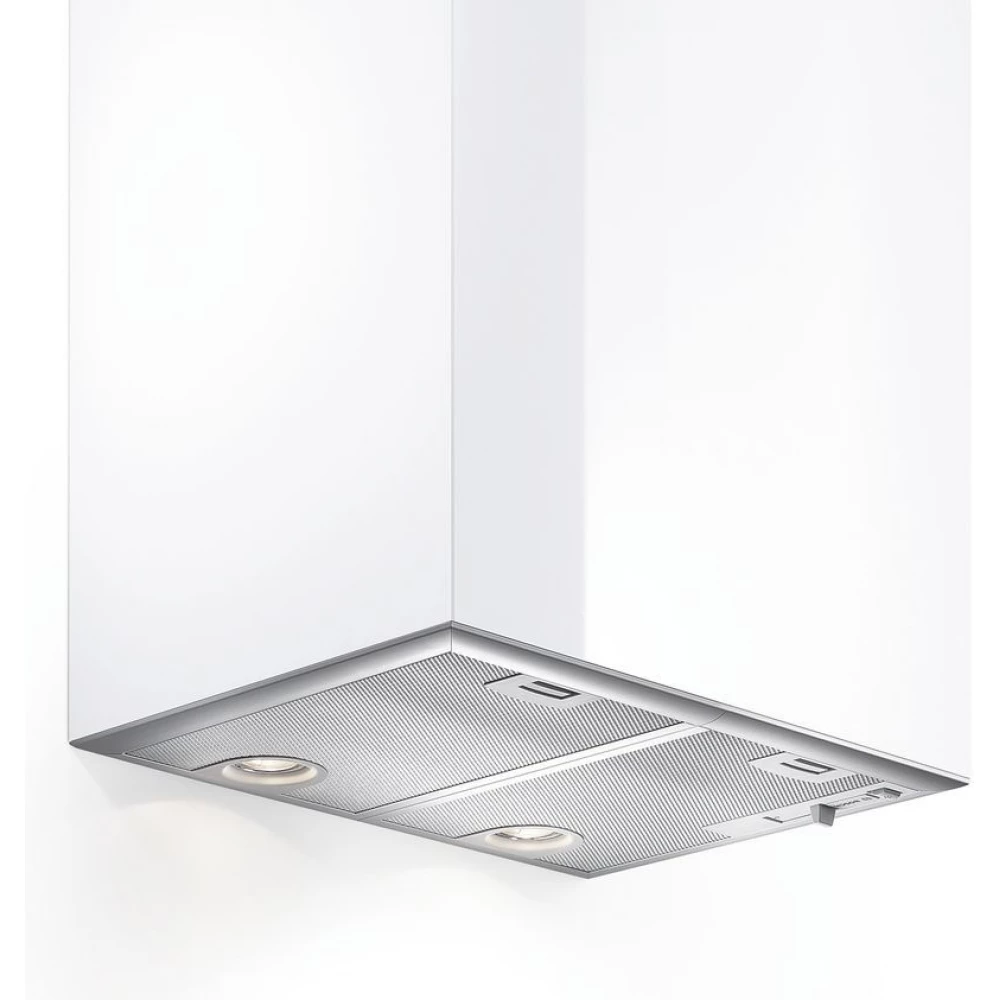

- a vapor hood that can be built into a chimney
- can be installed in a prepared upper cabinet, chimney, etc. or can be mounted above cooking island
- Two motor designs
- can also be applied to an outlet and circulation mode
- For an internal circulation mode, a coal filter (separate accessory) is required
- 3 normal and 1 intensive power levels
- sliding switch for exhaust speeds and lamp
- Metal-fat filter with aluminum frame in a dishwasher
- 2 x LED Spot 2.15W (low voltage)
- brightness: 438 lux
- Color temperature: 3500 ° K

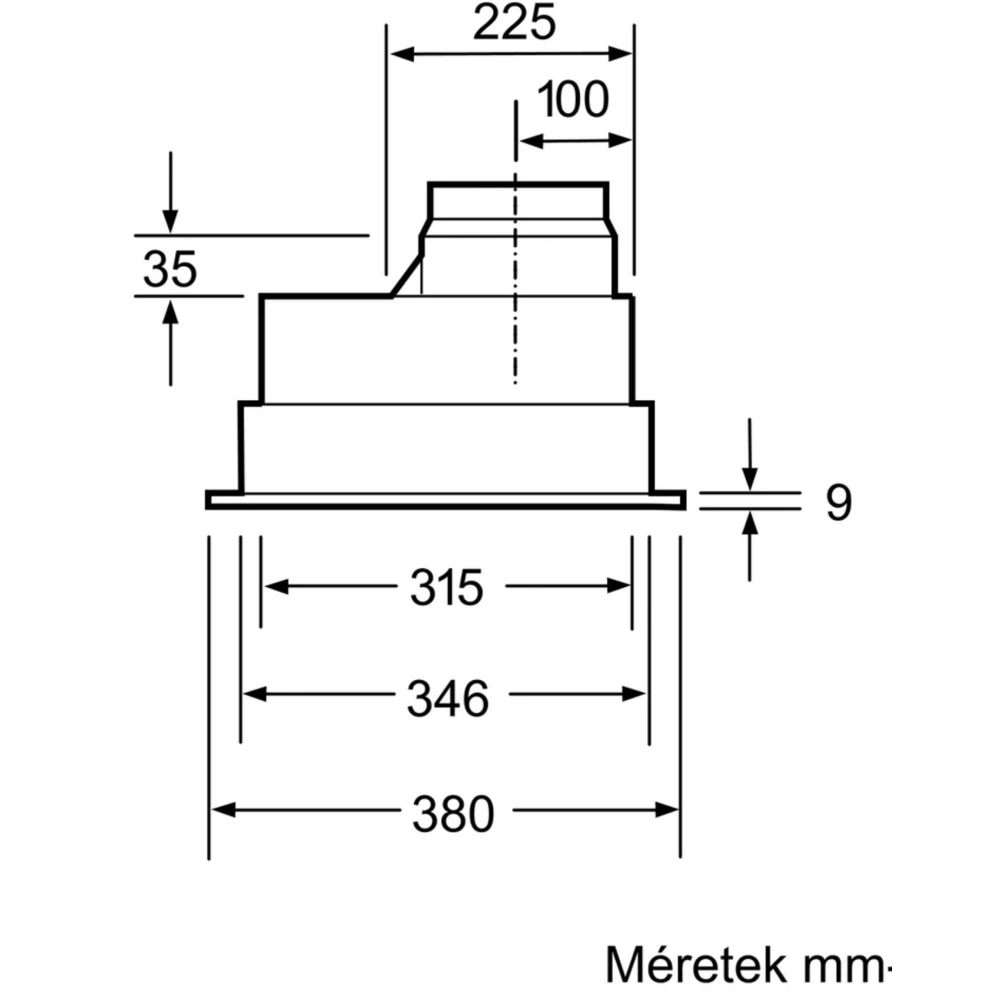

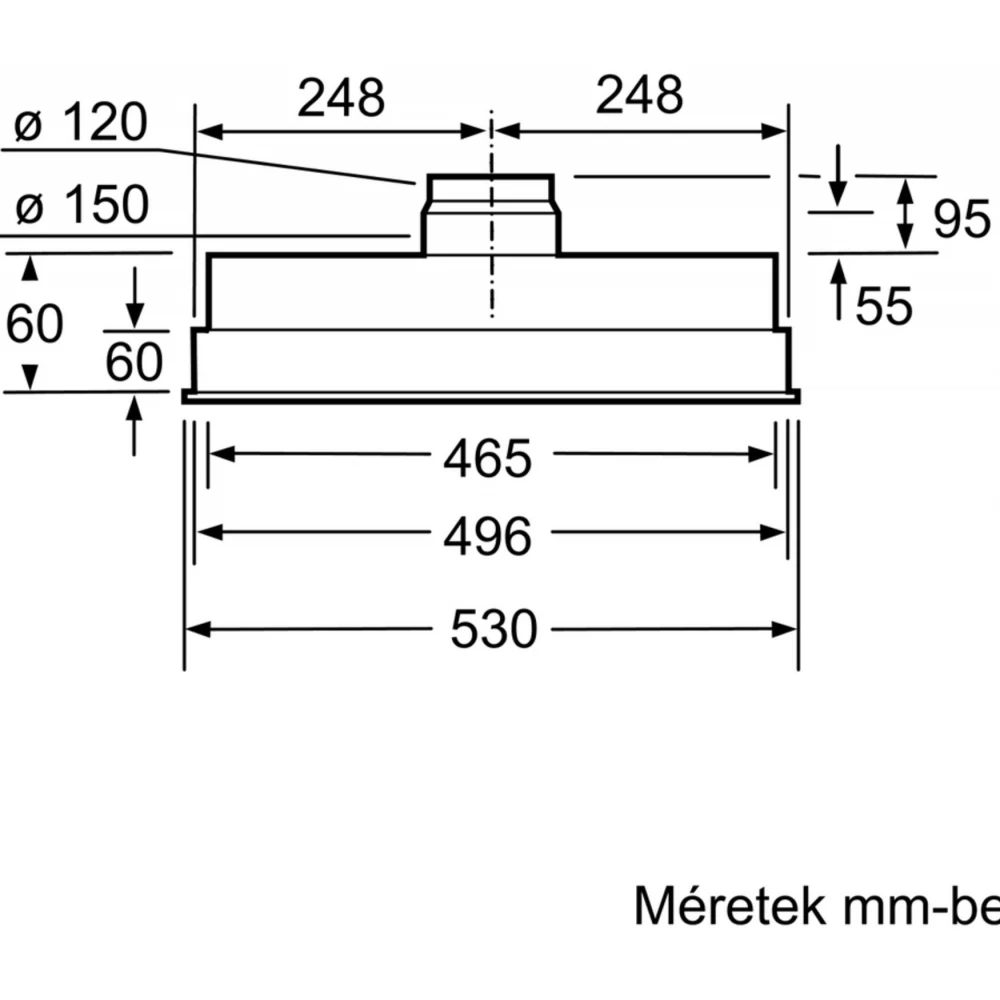

- Dimensions (height x width x depth): 255 x 530 x 380 mm

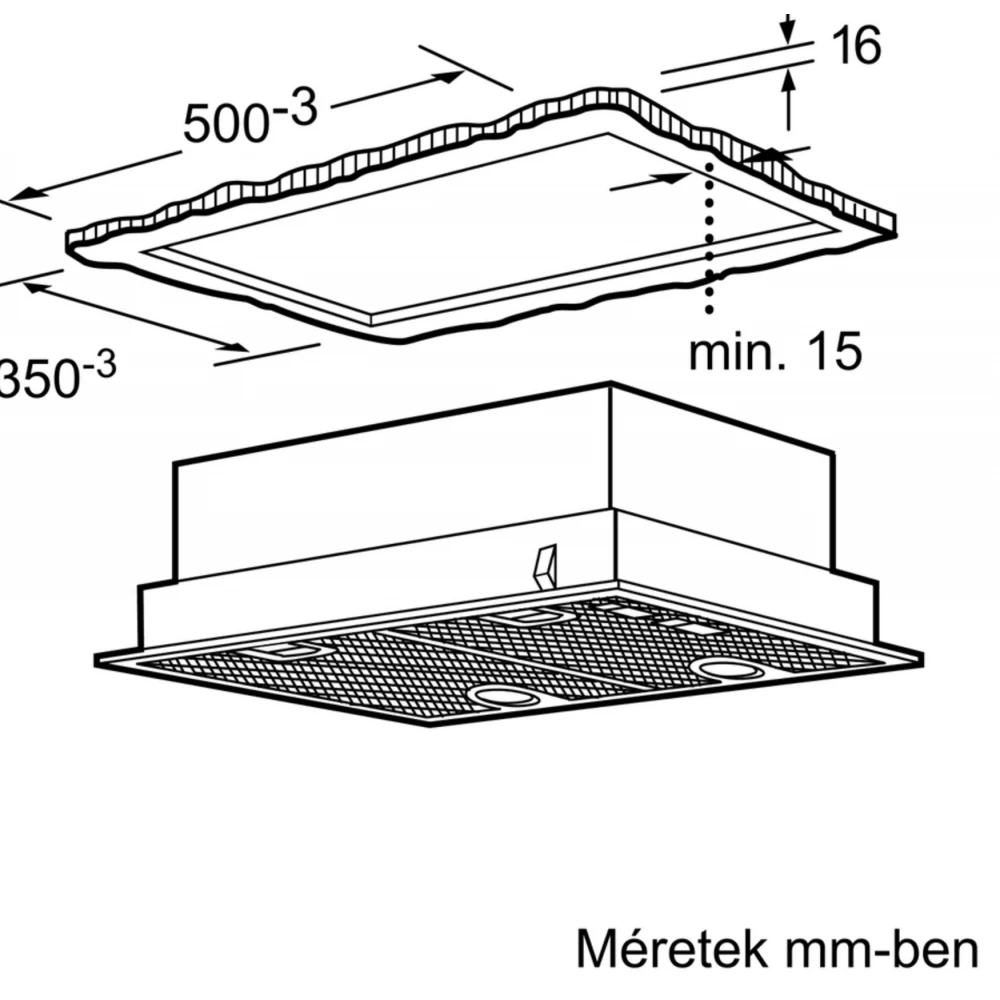

- Installation dimensions (height x width x depth): 255 x 500 x 350 mm
- Exit tube with a diameter of 120 or 150 mm
- with backflow inhibitor
- Connection value: 206 W
- Extracting capacity in exit mode according to EN 61591:
Maximum normal grade: 362 m³/h, intensive grade: 618 m³/h
-Noise levels in the EN 60704-3 and EN 60704-2-13 in exit mode:
- at the highest grade: 56 pcs (A) re 1 pw (43 db (a) re 20 µpa sound pressure)
- on intensive grade: 68 pcs (A) re 1 pw (55 db (A) re 20 µpa sound pressure)
- Maximum exhaust power: 618 m3/h
- Energy Efficiency Class: C
- Average annual energy consumption: 79.8 kWh/year
- Hydrodynamic efficiency: D*
- illumination efficiency: a
- Fat Surgery Efficiency: B
- noise level (minimum/maximum): 38/56 pcs
