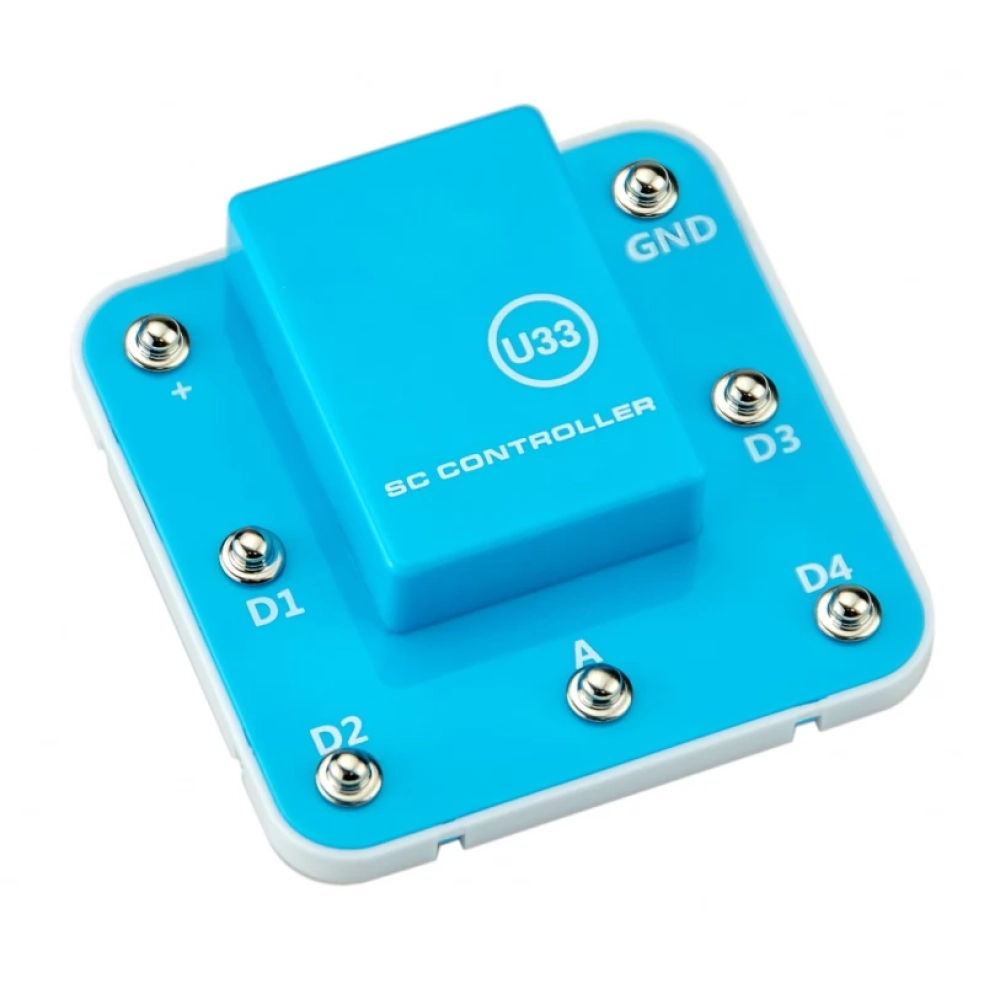

BOFFIN U33 motorvezérlő accessory

U33 motor control accessory for Boffin IV Coding kits.

In the application, go to the main menu (CONTROL - PROGRAMMING - MANUALS). Click the CONTROL button and the control panel (OP) will appear.

The U33 has 5 outputs (D1, D2, D3, D4 and A) that can be controlled with the Boffin app. Outputs D1-D2 and D3-D4 are paired to drive the motor in both directions and one of two output voltage levels can be set, called H (higher - 5V) and L (lower - 3V). Output A is low power and cannot control most motors.

The U33 can be controlled in two ways via the Boffin app running on a Bluetooth device:

- Control panel (real-time remote control)
- Boffin application PROGRAMMING (simple graphical control)
- U33 connectors:

(+) - battery output power
GND - current return to the batteries
D1 - motor connector output, connected to D2, higher and lower level
D2 - motor connector output, connected to D1, higher and lower level
A - connector output for low-current use, 4V output level
D3 - motor connector output, connected to D4, higher and lower level
D4 - motor connector output, connected to D3, higher and lower level

Only an add-on, not a stand-alone game.
