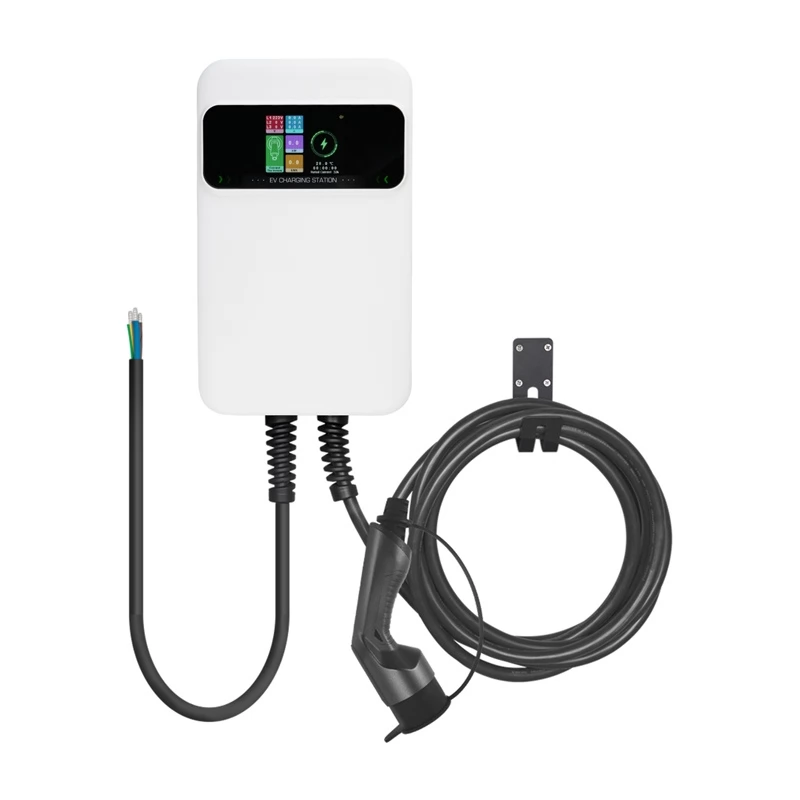

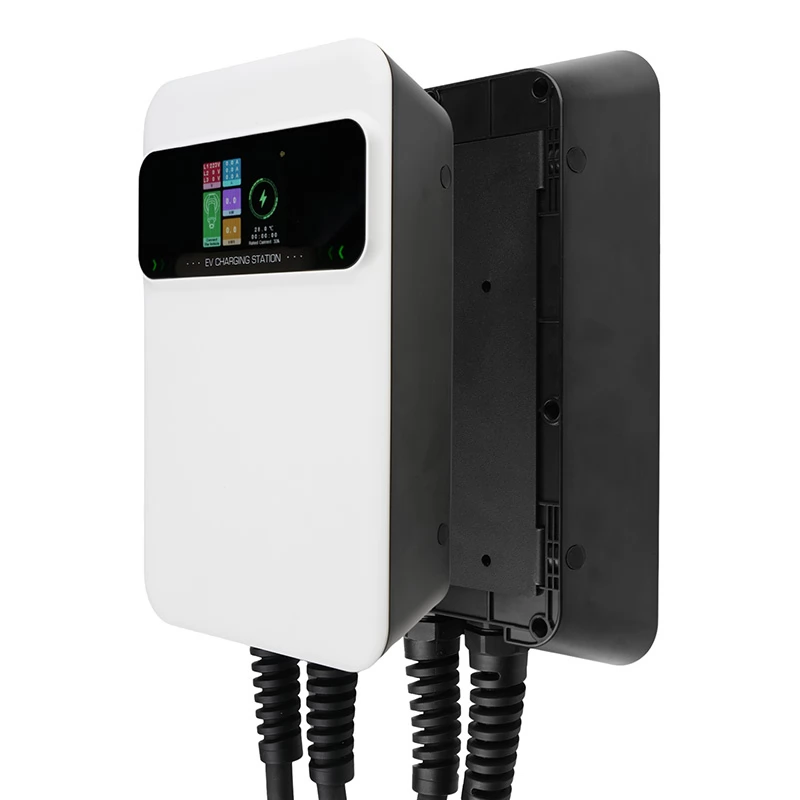

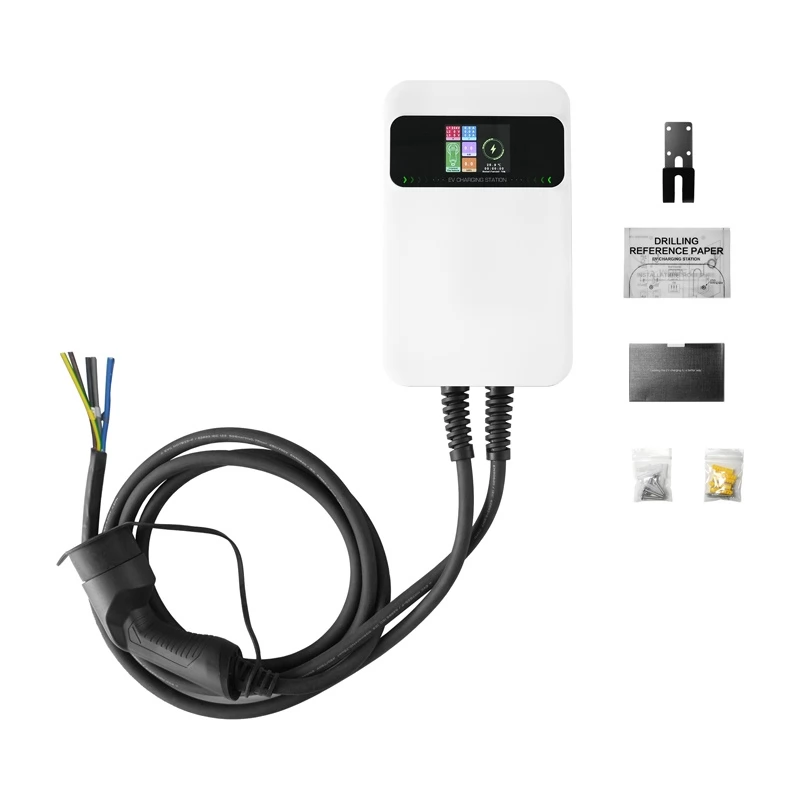

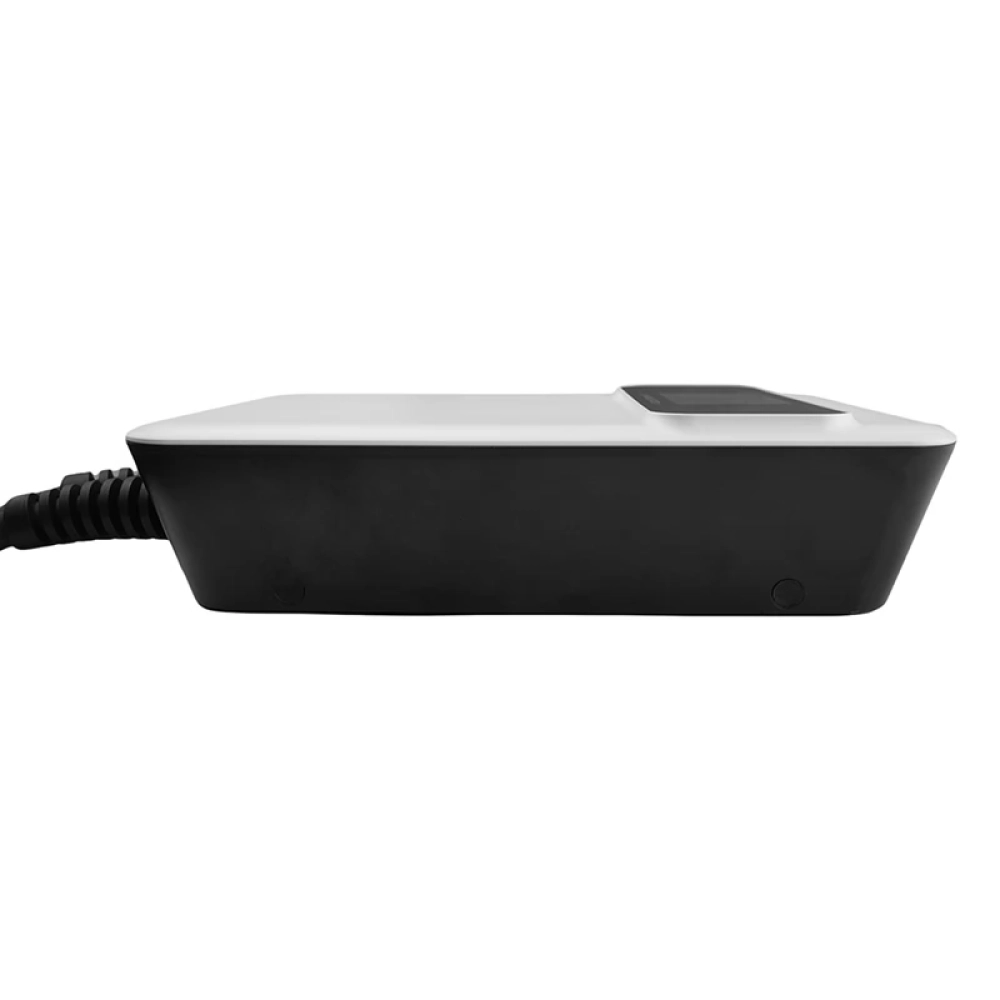

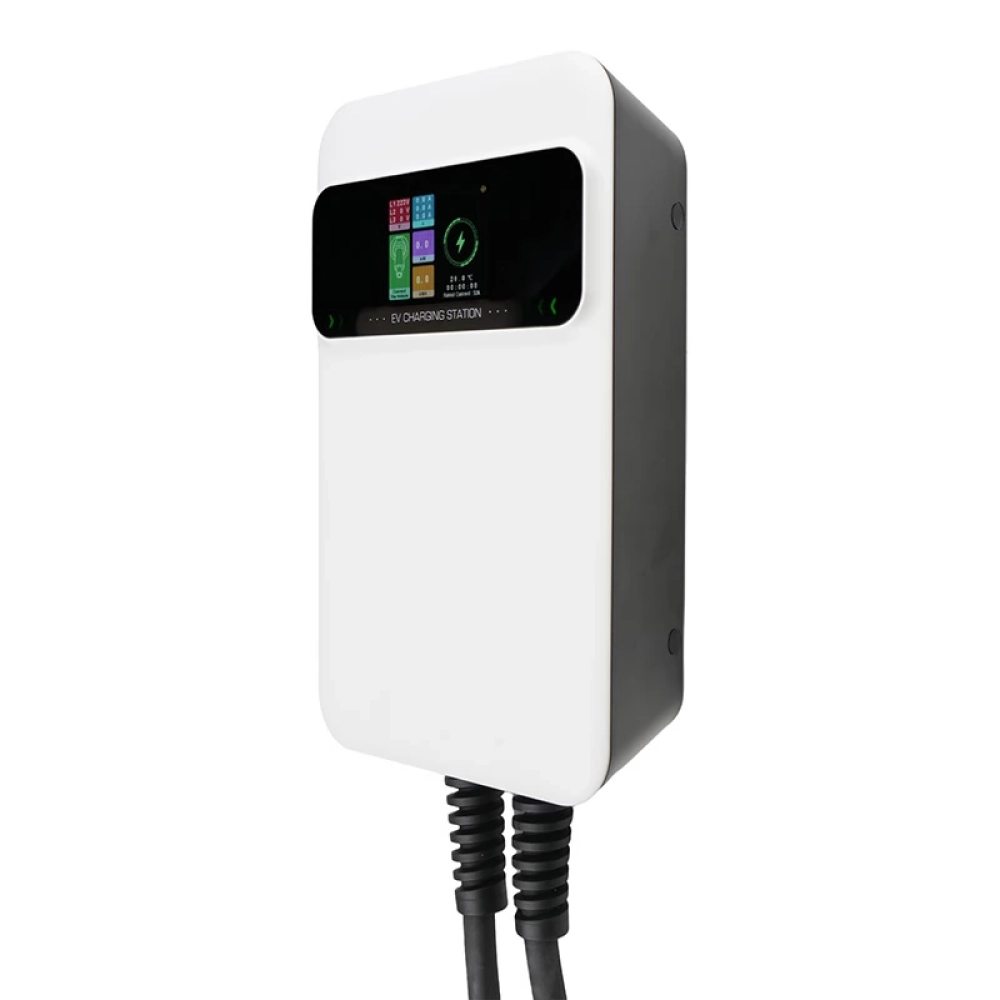

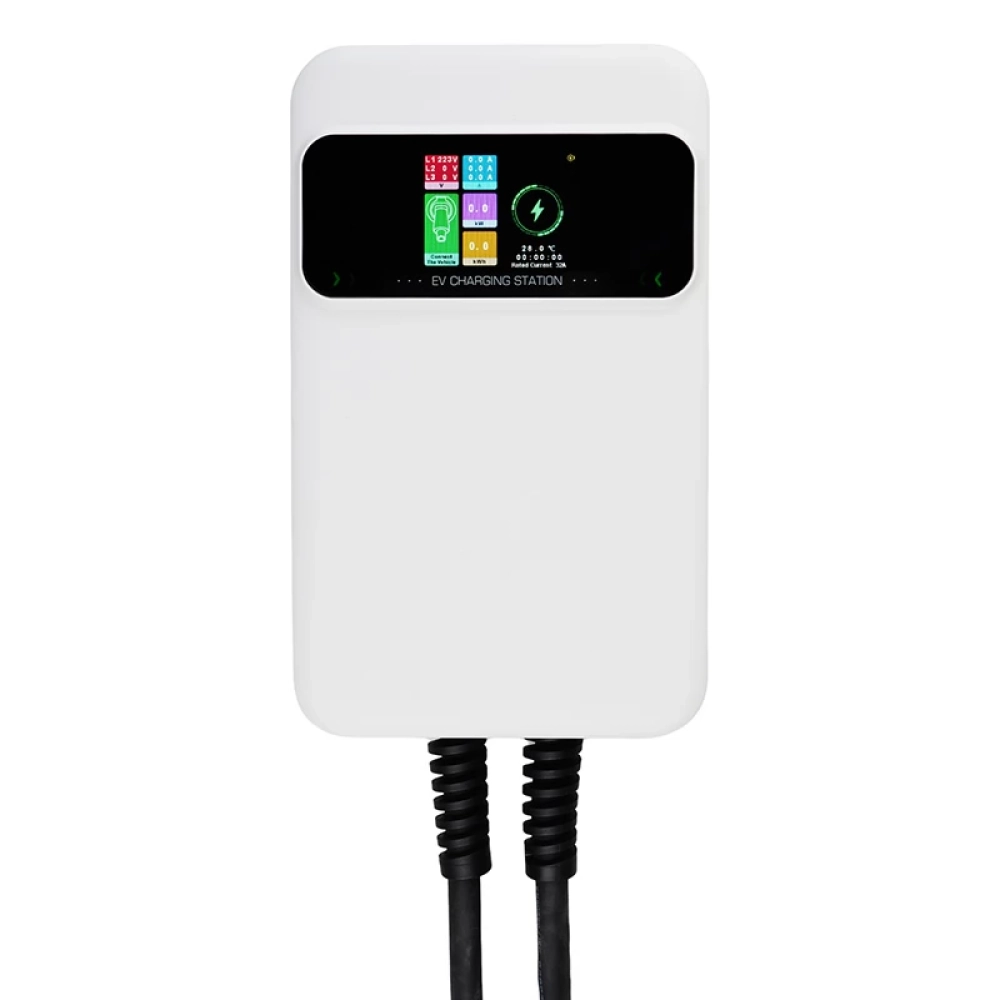

The SQ20-app can be mounted on a wall and is ideal for private homes and professional applications. Connected via Bluetooth to the application at any time, you can remotely adjust the charging time and current, start and stop charging, and check your session history.

Advanced technology and simple treatment

The charger is equipped with a 3.5 -inch colored LCD display that shows the charging parameters -time, voltage, current, temperature and power consumption in real time. Built -in smart chip automatically diagnoses and corrects non -hardware errors, increasing charge safety and reliability. You can also update the software inside the application so you can easily introduce new features.

Security and compatibility

The Wallbox SQ20-App has full protection: overheating, overheating, overload, short circuit, leaking current and discharge. It supports SAE J1772, IEC 62196-2 and GB/T interfaces, making it compatible with most electrical vehicles on the market. The maximum filling current provides 32 A and the IP66 rated housing provides dust and water resistance.

-Model SQ20-11kW-app
- Output power 11 kW
- Maximum current 32a
- Frequency 47-63 Hz
- Charging interface SAE J1772, IEC 62196-2, GB/T
- Display 3.5 "color LCD display
- Waterproof IP66
- Dimensions 295 × 195 × 65 mm
- ambient temperature is -25 ° C ~ + 55 ° C
- humidity 0-95% non-condenser
- Max. Height above sea level
