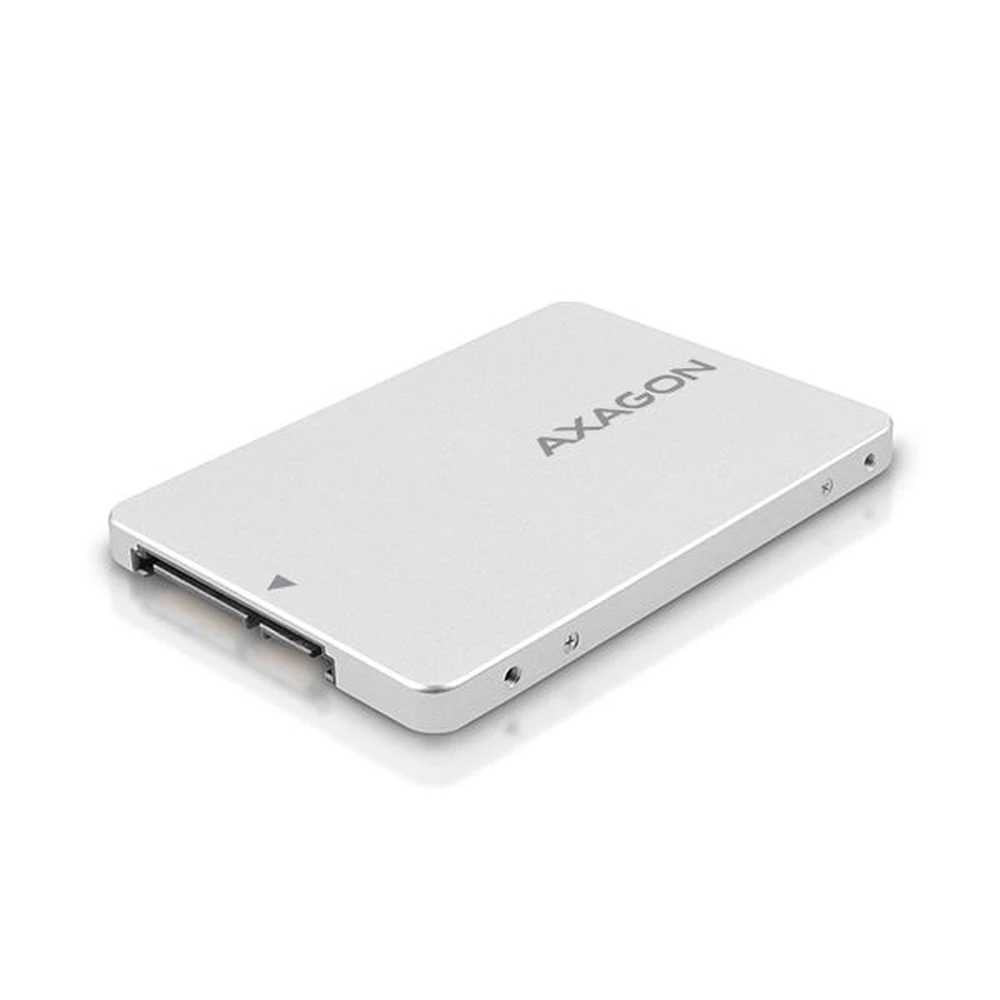

Internal 2.5" AXAGON RSS-M2SD box with SATA interface for SATA M.2 SSD disks.
The SATA 6G interface enables up to 6Gb/s offered by modern M.2 SSD disks. speed. The internal M.2 box also supports other modern functions (e.g. TRIM).
22x80 mm SATA M.2 SSD disks can be placed in the box. The number of SSD disks that can be placed in the box is not limited, the M.2 SSD cards to be inserted can be either single-sided or double-sided.

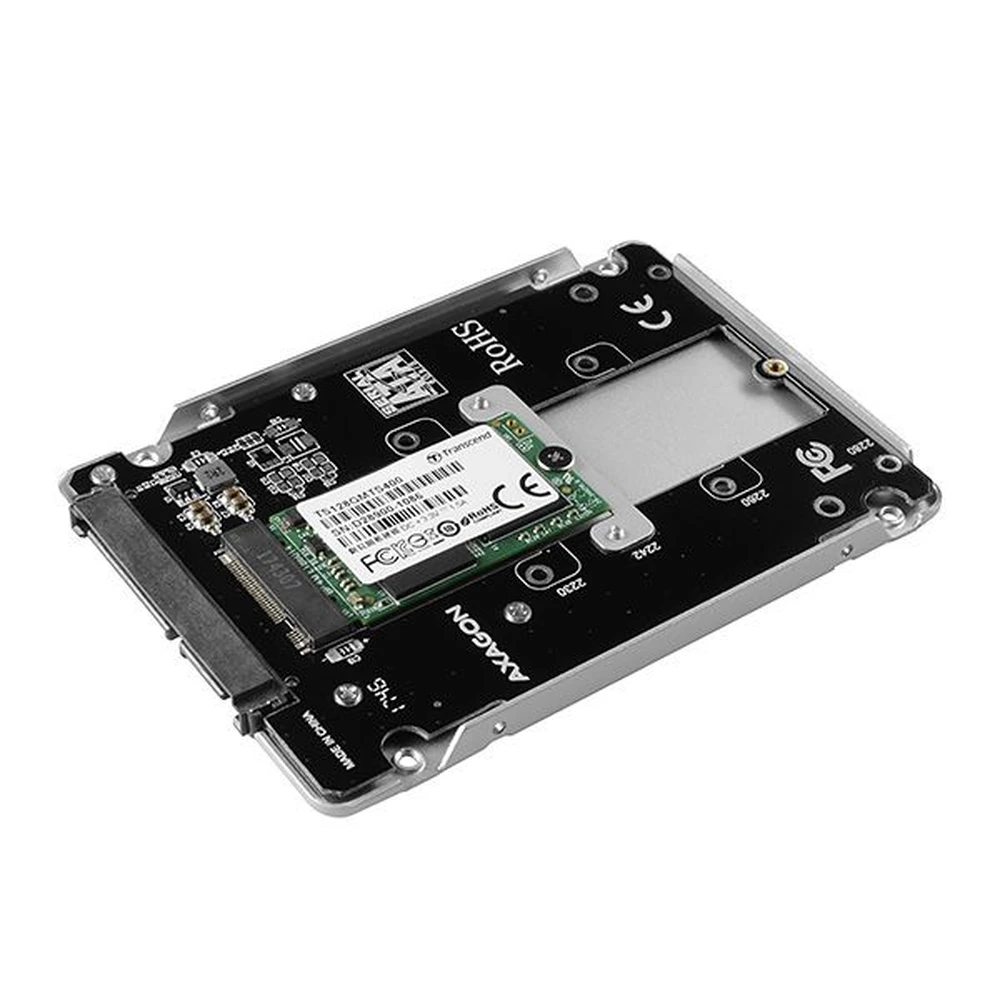

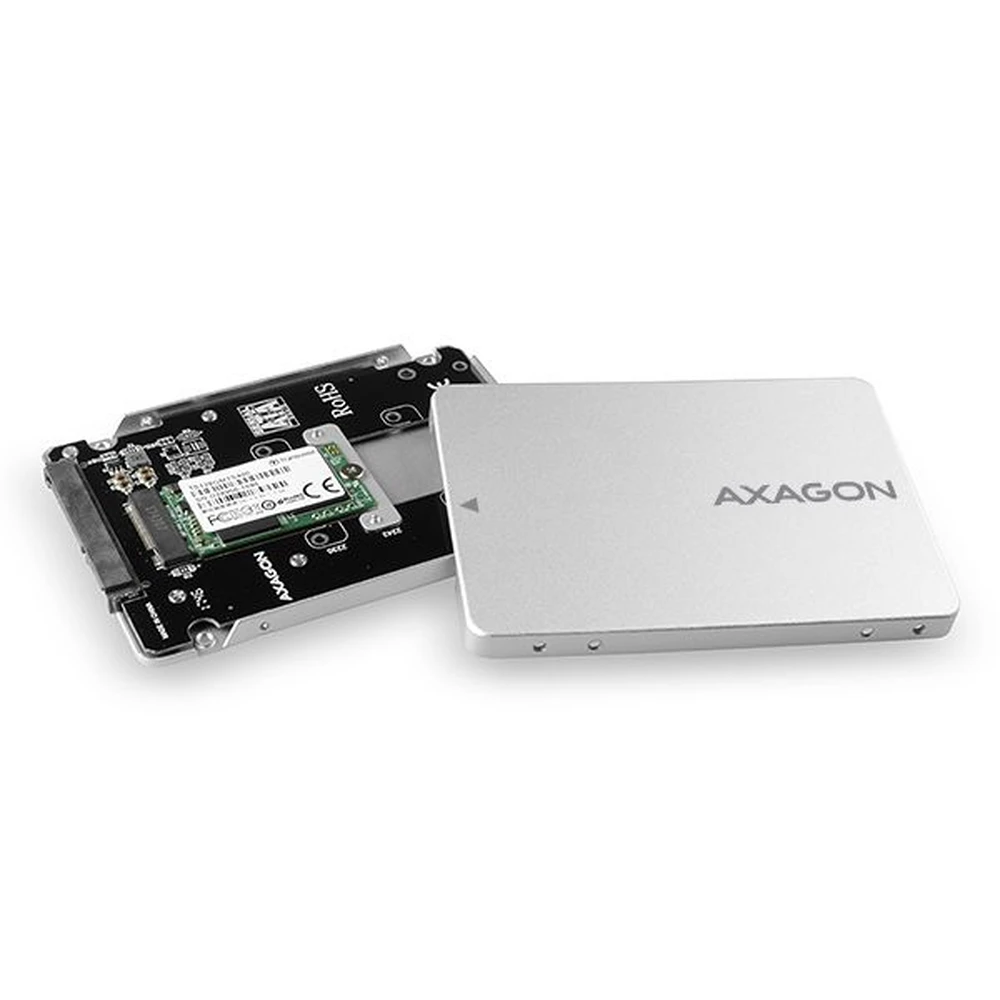

The internal box with an M.2 card works as a standard hard drive in the operating system, BIOS (UEFI) and when booting. Standard SSD disk look and size reducer By inserting the M.2 SSD disk into the reducer, you can quickly create an internal 2.5" disk.

Input:
- SATA 3G (SATA II) and SATA 1.5G (SATA I) compatible SATA 6G (SATA III) interface.
- Box and motherboard connecting 22 pins (7+15) male SATA data power connector.
- To achieve the best data transfer speed, the use of a SATA 6G controller is recommended.

Aid:
- SATA M.2 SSD disks,
- for B+M-key and B-key format cards,
- 75-pin slot for M.2 NGFF disks.

Additional features:
- Support for B+M-Key or B-Key SATA (AHCI) M.2 SSD disks max. without capacity limitation.
- Support for 2230, 2242, 2260, 2280 mm size M.2 disks.
- Single-sided and double-sided M.2 SSD disk support.
- Meets the Serial ATA 3.1 specification (SATA/600), data transfer speed up to 6 Gb/s (600 MB/s).
- Meets the Serial ATA 2.0 specification (SATA/300), data transfer speed up to 3 Gb/s (300 MB/s).
- Meets the Serial ATA 1.0 specification (SATA/150), data transfer speed up to 1.5 Gb/s (150 MB/s).
- Support for the TRIM function that prevents gradual degradation of SSD performance.
- Internal boxed SSD booting support.
- Full Plug and Play support.
- The adapter is powered by a standard 15-pin SATA connector input.
- The aluminum body helps to cool the M.2 SSD disk.

Additional data:
- Inner box dimensions: 100 x 70 x 7 mm.
- The weight of the inner box is 48 g (without M.2 SSD disk).

Supported operating systems:
- MS Windows 7 / 8 / 8.1 / 10 and higher, Windows Server 2008 R2 / 2012 / 2016 and higher (all 32 and 64-bit Windows OS versions are supported), Mac OR X 10.x and higher, Linux 2.6.x and higher.
- Note: It is purely a hardware narrower, no device control program needs to be installed.

Package contents:
- Internal SATA M.2 SSD 2.5" SATA box,
- Mounting material and screwdriver,
- Printed Installation Guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,

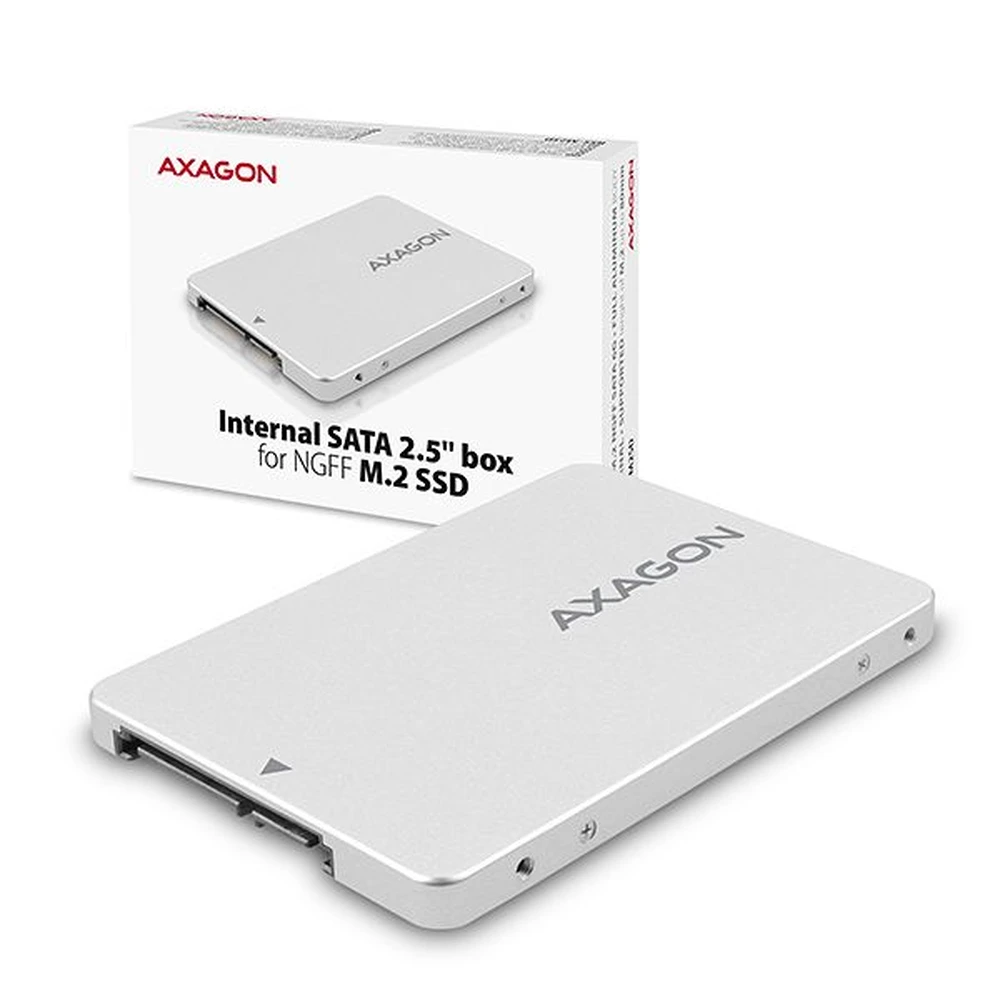

- Cardboard box packaging with clearly indicated parameters.
