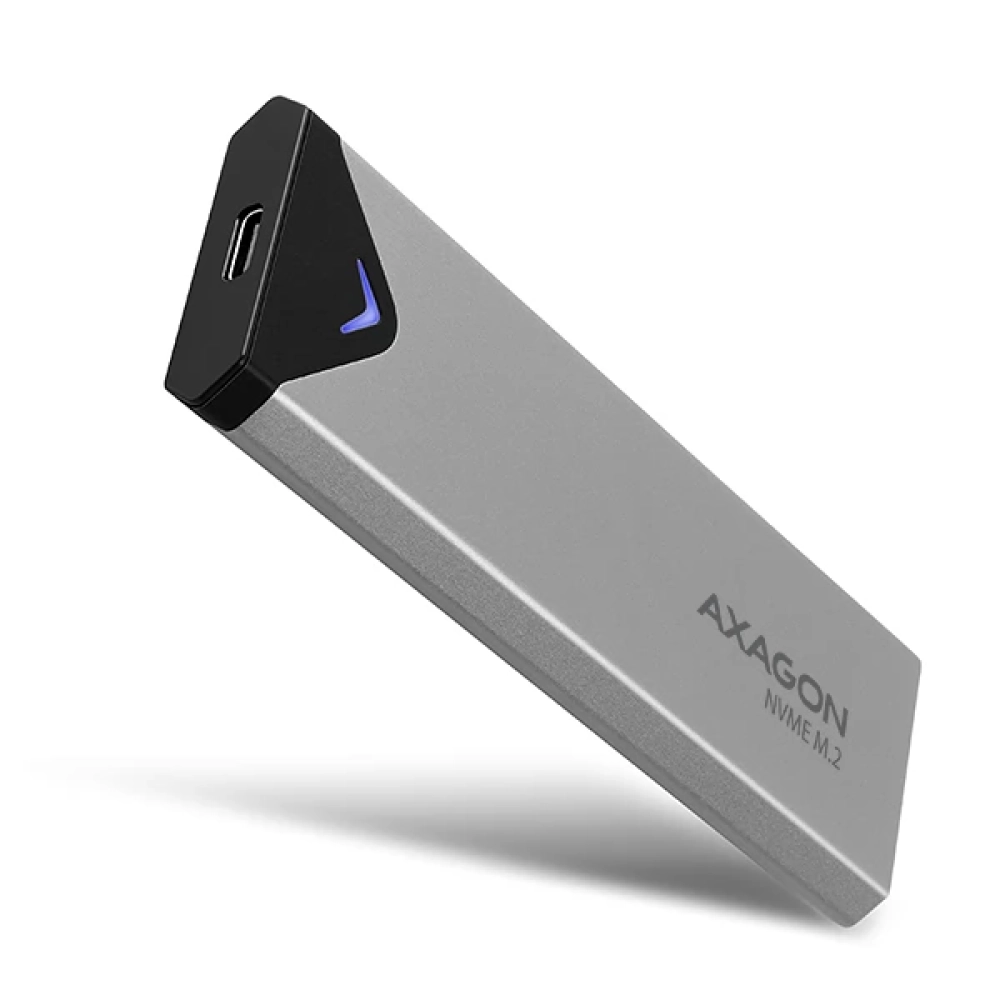

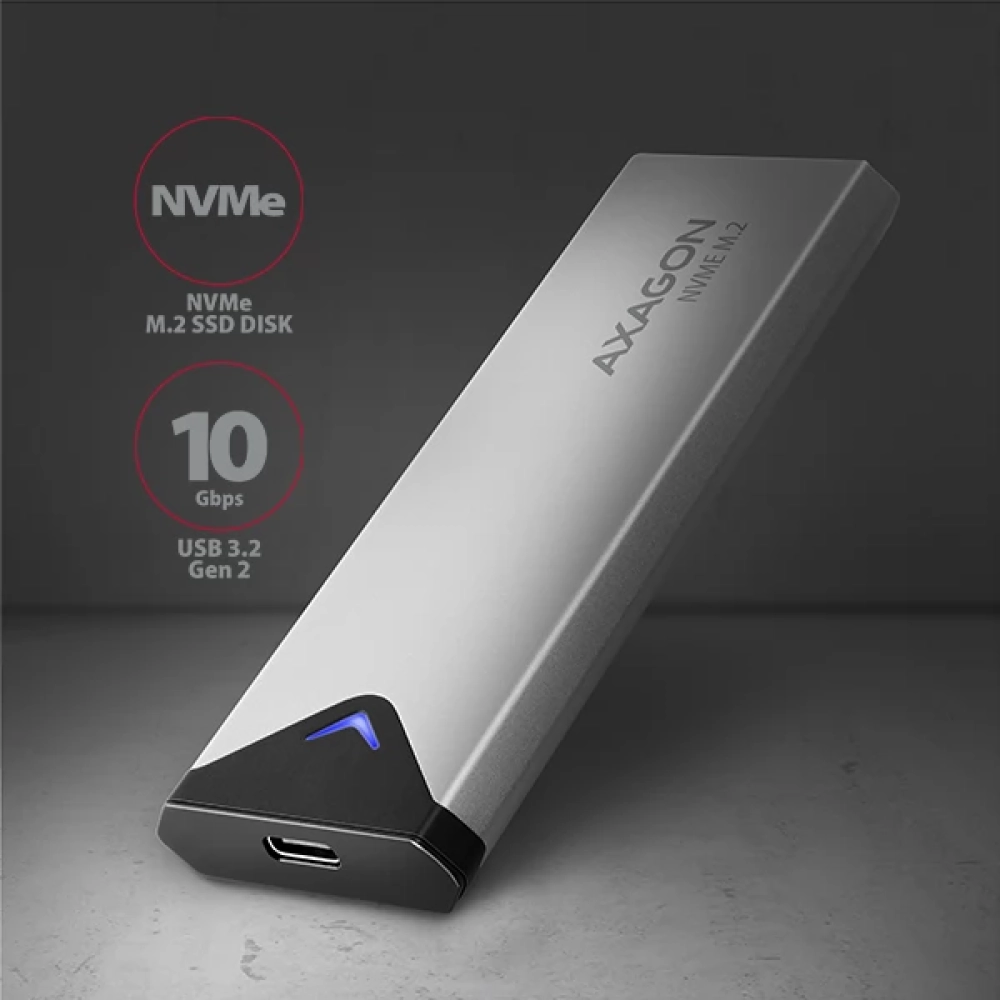

Super fast AXAGON EEM2-UG2 with external USB 3.2 Gen 2 interface for NVMe (PCI-Express) M.2 SSD drives.

The latest USB interface allows you to enjoy the speed of modern M. 2 SSD drives. Thanks to the fast USB 3.2 Gen 2 interface, the transfer speed is up to 10 Gb/s. The M.2 external housing also supports other modern functions, such as TRIM.

NVMe M.2 SSD drives up to 22x80 mm in size can be used for the external case. The housing has unlimited SSD drive capacity. M.2 cards can be single-sided or double-sided.

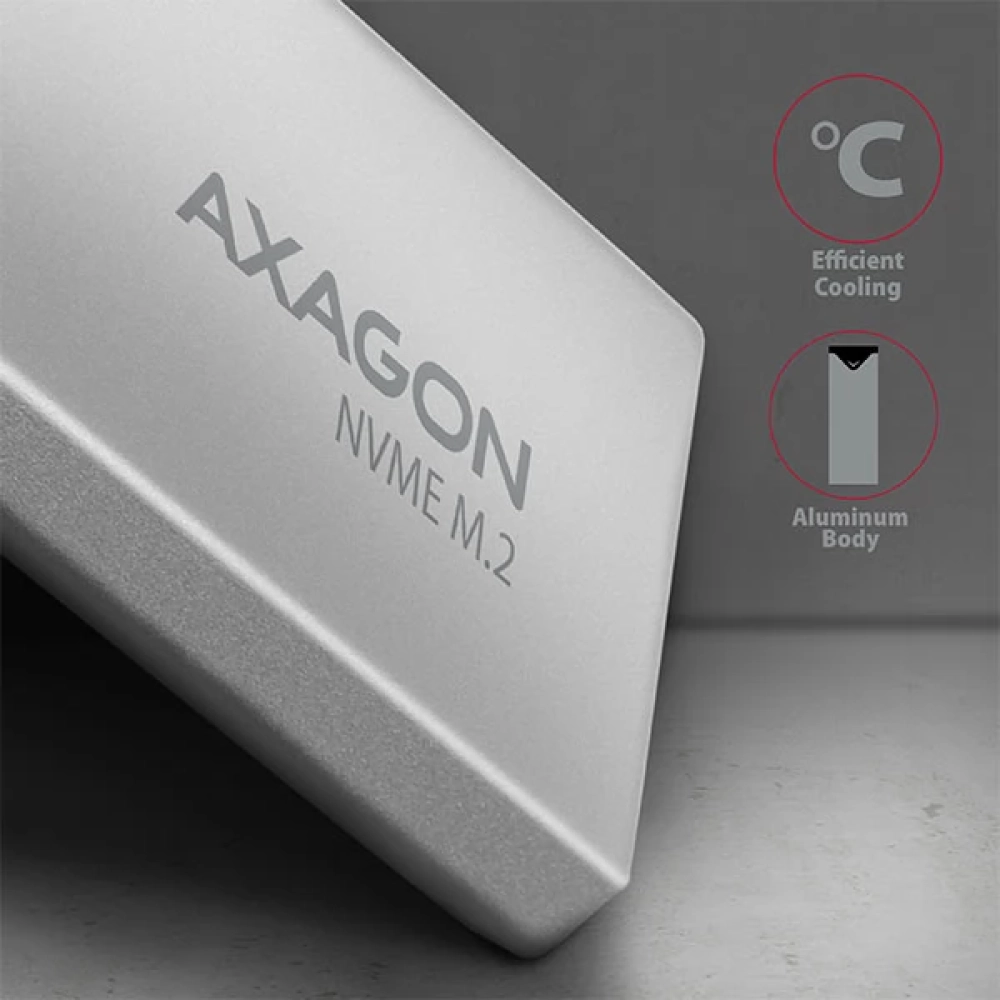

The box's aluminum body and heat-conducting foot pads provide very good cooling for the inserted M.2 SSD drive.

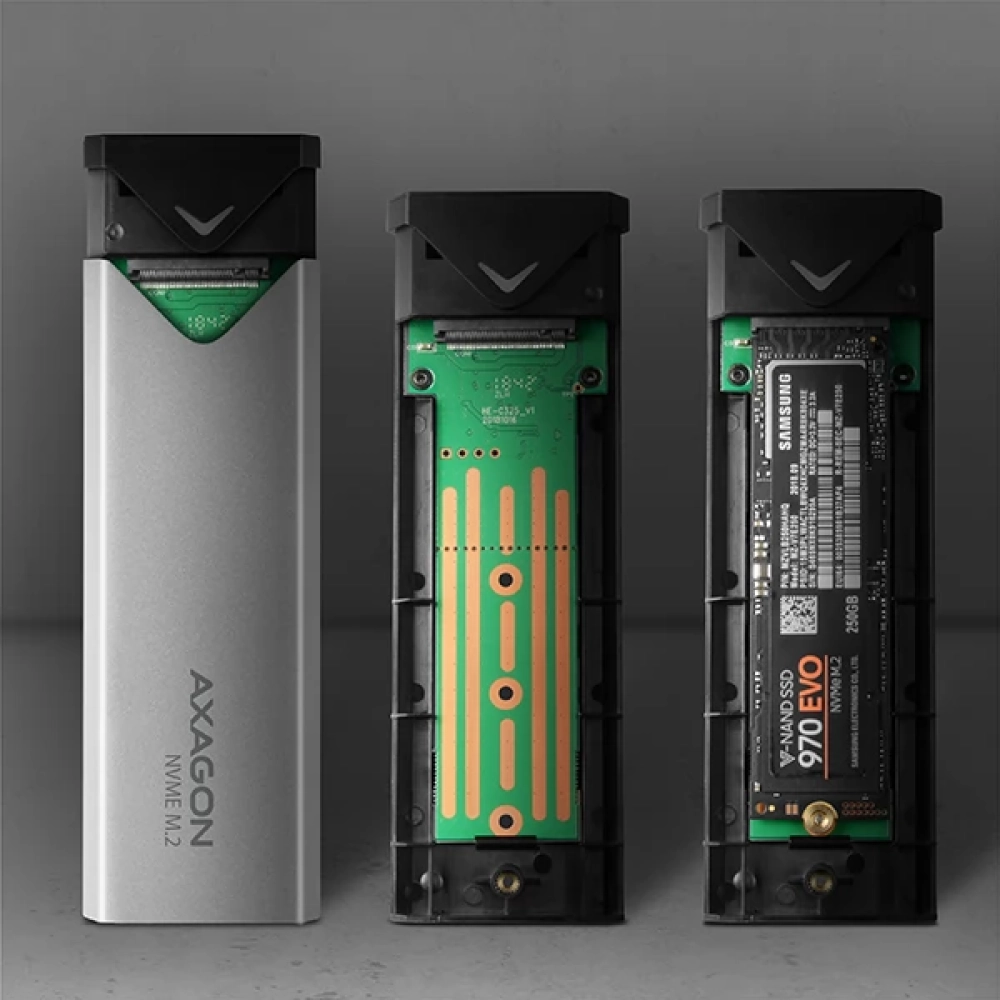

By placing the M.2 SSD drive in this case, you can easily create a fast and compact external drive. The box can be used on both computers and laptops, so mobile phones and tablets support OTG function.

Input:
- USB 3.2 Gen.2 SuperSpeed+ USB up to 10 Gbit/s

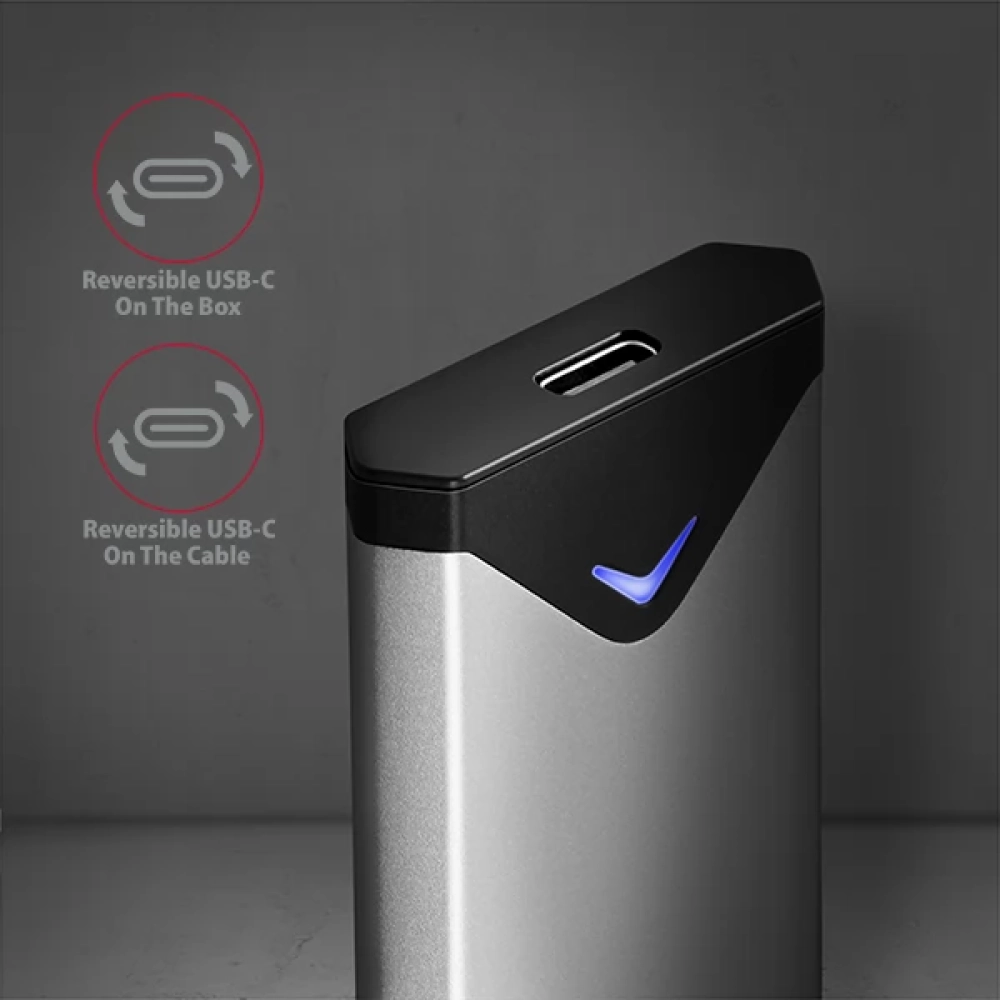

- connect via reversible USB type C female connection.

Aid:
- NVMe M.2 SSD drives,

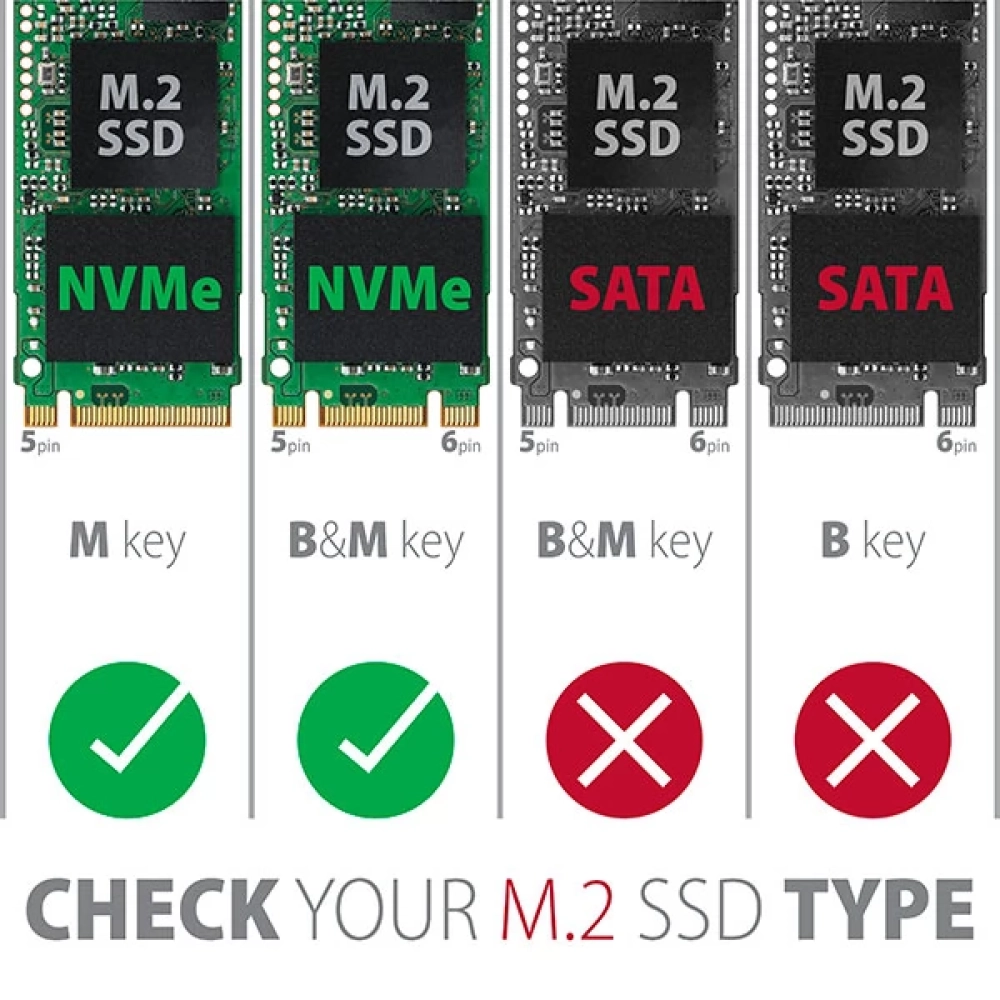

- for M-key and B+M-key format cards,
- NGFF 75-pin M-key slot for NVMe M.2 disks.

Additional features:
- Compatible with USB 3.2. Gen 2, backward compatible with USB 3.1 Gen 1 / USB 3.0 with USB 2.0.
- Support for 10,000 / 5000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed ​​/ HighSpeed) data transfer speeds.
- Support of M-key or B+M-key NVMe (PCI-Express) M.2 SSD drives with no maximum capacity limitation.
- Support for 242, 2260, 2280 mm M.2 drives.
- Support for single-sided and double-sided M.2 SSD drives.
- Complies with revision 3.1 of the PCI Express Base specification.
- Complies with the NVM Express 1.3 specification.
- Meets the USB Mass Storage Class specification.
- The total throughput / transmission speed of the housing given by the used USB 3.2 Gen 2 interface (theoretically up to 10 Gbit/s) is given by the limits of the USB 3.2 Gen 2 interface.
- UASP (USB Attached SCSI) support in Windows 8 and newer versions for faster data transfer.
- Support for the TRIM function that prevents the gradual degradation of SSD performance over time.
- Support for booting from SSD in the external housing.
- Thanks to the Hot Plug system, it can also be connected to the device while driving.
- Full Plug and Play support.
- Support energy-saving mode-sleeps after 5 min of inactivity.
- Charging up to 900 mA from a USB port via USB buses is completely sufficient in all cases.
- Elegant LED diode (continuously lit) indicates connection to the computer's USB port, and flashing indicates data transfer.
- The resistant aluminum body and heat-conducting pad help to cool the M.2 SSD drive.
thanks to this, the heat generated during the plate's operation is better distributed and passed on to the environment.
- Connection via USB 3.2 Gen 2 type C female connector.
- The packaging includes a 22 cm long USB type C small / USB type C cable.

Additional data:
- Outer case size: 115 x 39 x 11 mm.
- External housing weighs 43 g (without USB cable and M.2 SSD drive).

Supported operating systems:
- MS Windows 7 / 8 / 8.1 / 10 and higher, Windows Server 2008 / 2012 / 2016 and higher (all 32 and 64-bit Windows operating system versions are supported), Mac OS X 10.x and higher, Linux 2.6.x and higher, Android (Operating system and device support required).
- Note: If Windows 7 is used, the support of the OR in question must be checked with the manufacturer of the M.2 SSD disk.

Package contents:
- USB 3.2 Gen 2 external housing S for NVMe M.2 SSD,
- 22 cm long USB 3.2 Gen 2 cable,
- 3 heat conducting washers,
- Mounting material and screwdriver,
- Printed Installation Guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,

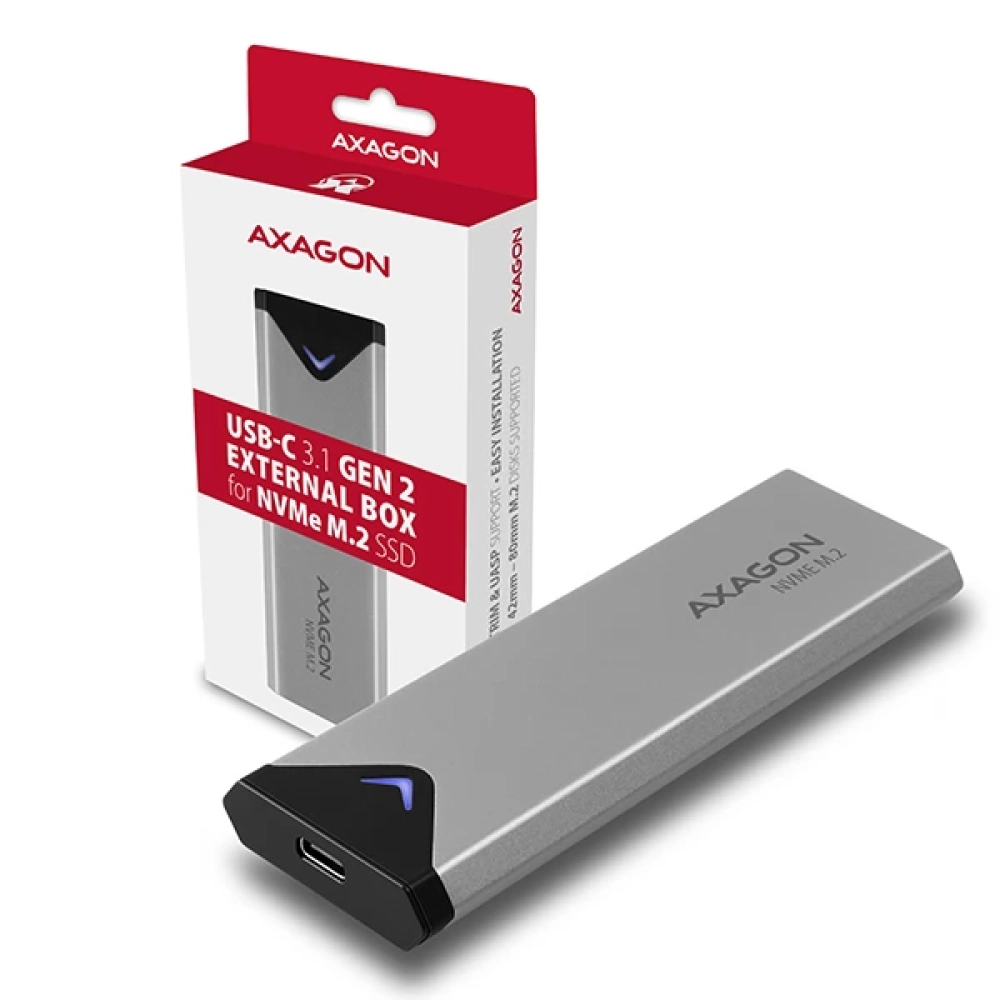

- Cardboard box packaging with clearly indicated parameters.
