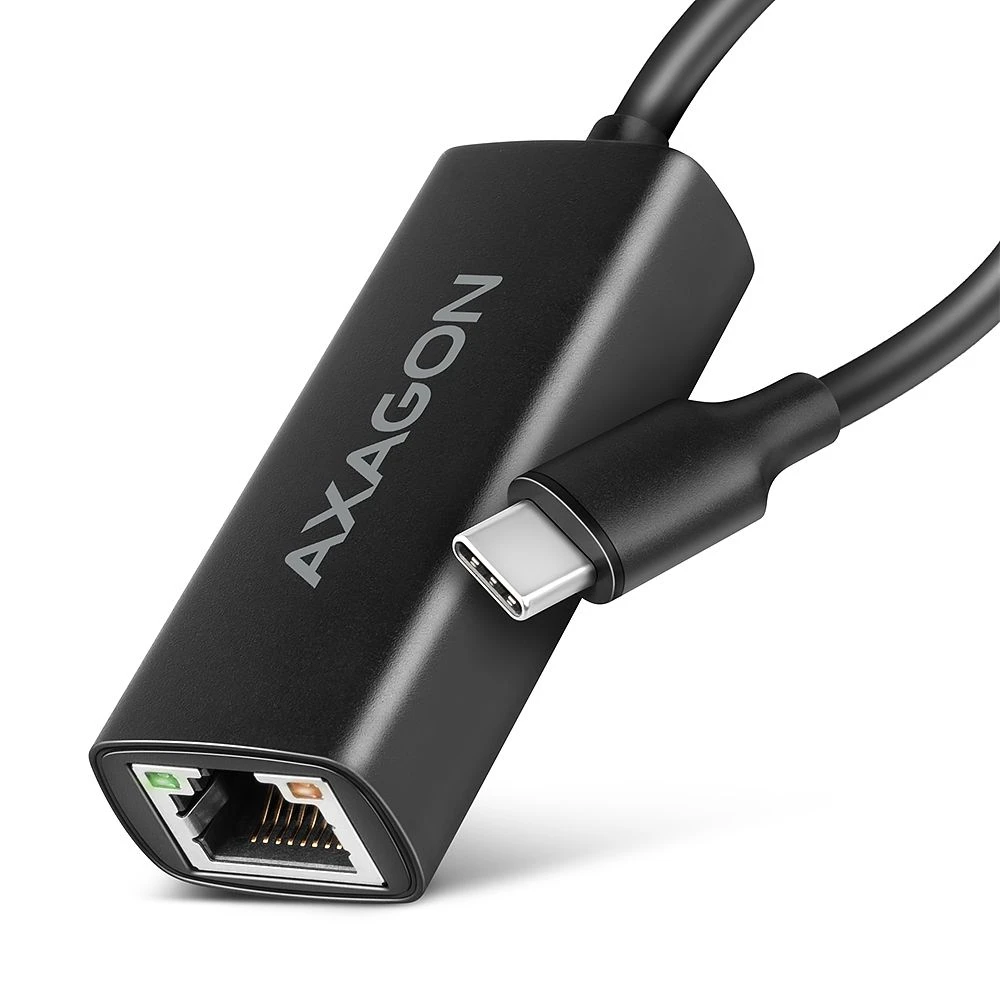

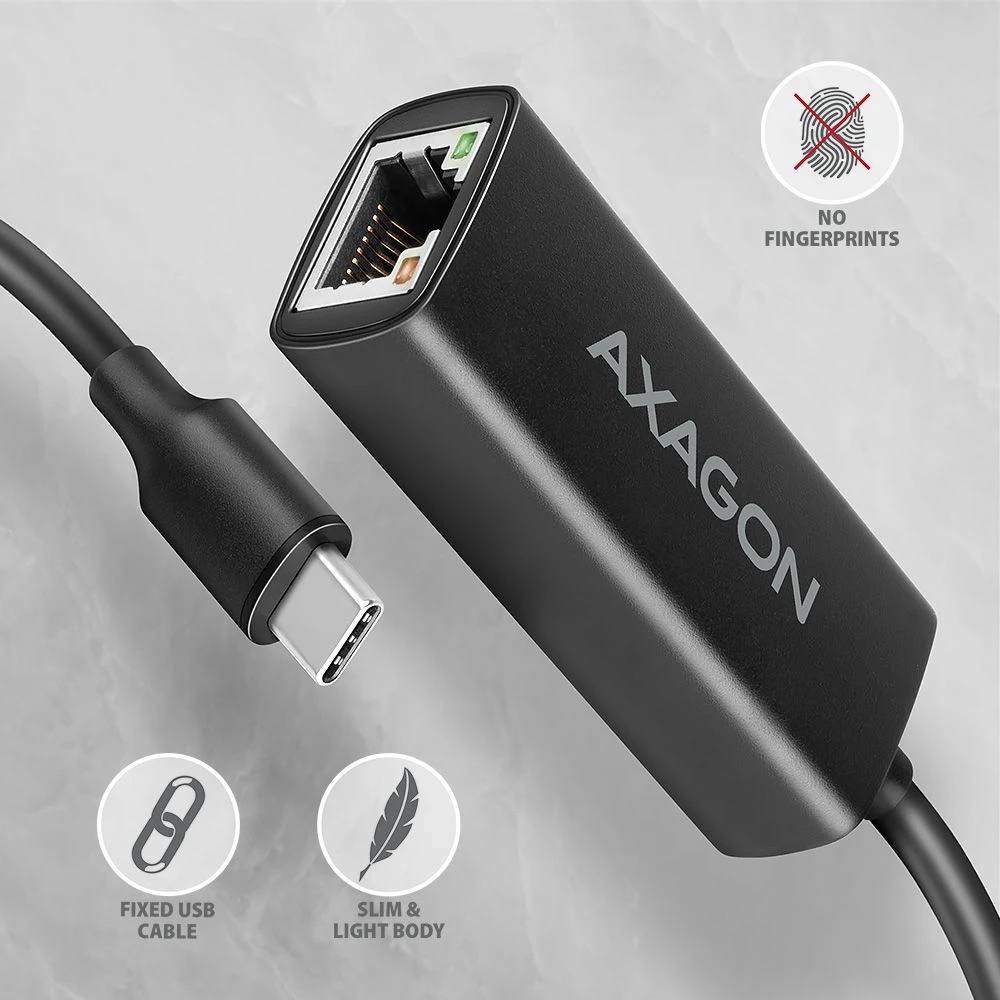

The AXAGON ADE-ARC external network card easily converts a USB-C 3.2 Gen 1 port to a Gigabit Ethernet port. Compatible with 10/100/1000 Mbit/s speed, the USB network adapter expands the computer with a fast and stable network connection, adds the missing RJ-45 network connector, another network card, or replaces the original non-functional network connection.

In addition to gigabit transmission speed, the LAN adapter has many functions, such as. IPv4/IPv6 checksum to reduce CPU load with checksums, cross detection and automatic correction, TCP high sending load, support for various modes of Wake-on-LAN, work with virtual VLAN and advanced power management services.

Thanks to its compact dimensions and minimal weight, it is an ideal accessory for laptops. Support for current versions of Windows, Mac OS X and Linux operating systems allows any desktop, laptop or ultrabook. In Windows 8.1 and later, the adapter allows simple automatic installation without an Internet connection.

Input:
- USB 5Gbps (USB 3.2 Gen 1 / USB 3.0).
- USB 480Mbps (USB 2.0) and USB 1.1 are backward compatible.
- Compatible with Thunderbolt 3 and 4.
- Connection to computers, mobile phones or tablets includes a C male USB plug.

Outputs:

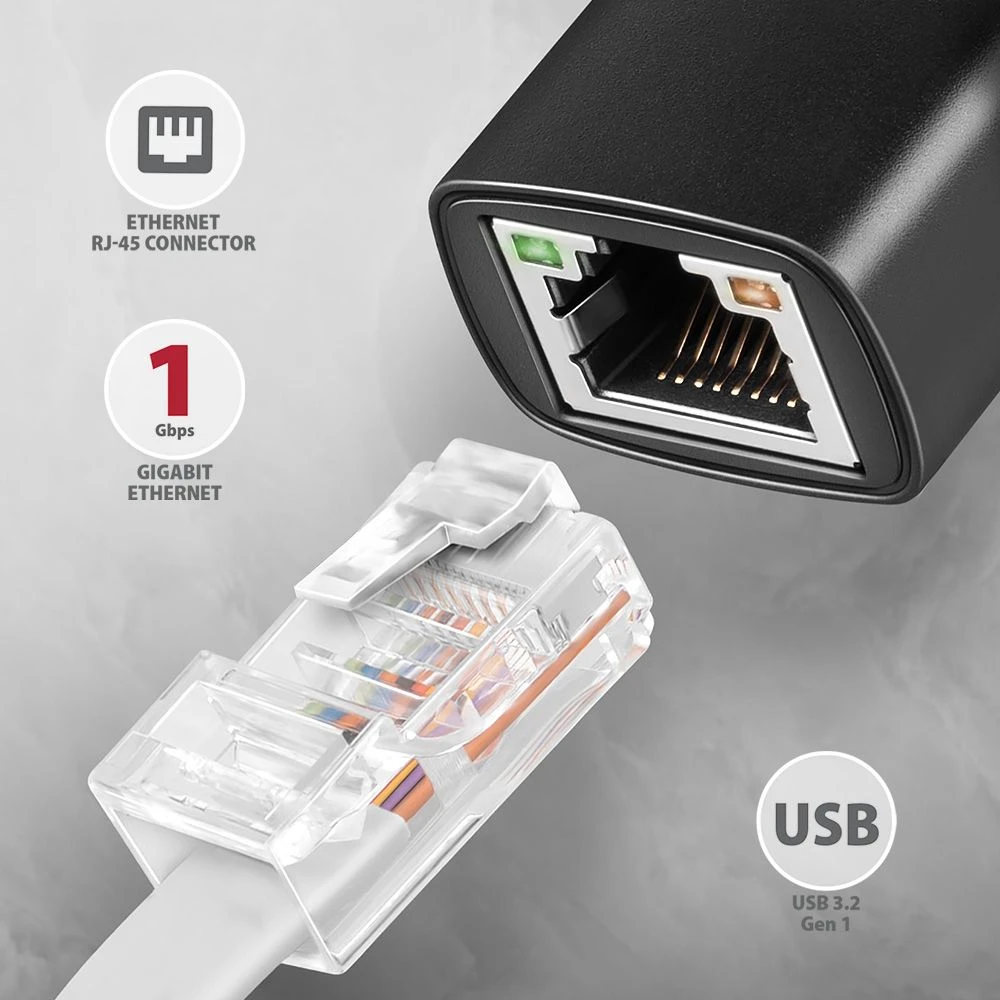

- Ethernet interface with RJ-45 connector with UTP or STP cable connection.
- Supported transmission speed for the Ethernet interface: 10/100 /1000 Mb/s
- Supported specifications: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
- 10/100/1000 Mbit/s automatic detection.
- IPv4/IPv6 packet Checksum Offload Engine (COE) support to reduce processor load, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 verification and checksum generation.
- TCP Large Send Offload V1 and V2 support.
- IEEE 802.1P Layer 2 priority encoding & decoding support.
- IEEE 802.1Q VLAN tagging support.
- IEEE 802.3az EEE (Energy Efficient Ethernet) support for power reduction in idle state.
- Jumbo frame support.
- Support for IEEE 802.3x flow control full-duplex and back-pressure flow control half-duplex transmissions.
- Auto MDI/MDIX support for crossover detection and auto correction eliminates the need for a crossover cable.
- Cyclic Redundancy Check (CRC) hardware support to detect data transmission errors.
- Pair Swap/Polarity/Skew Correction support.

Additional features:

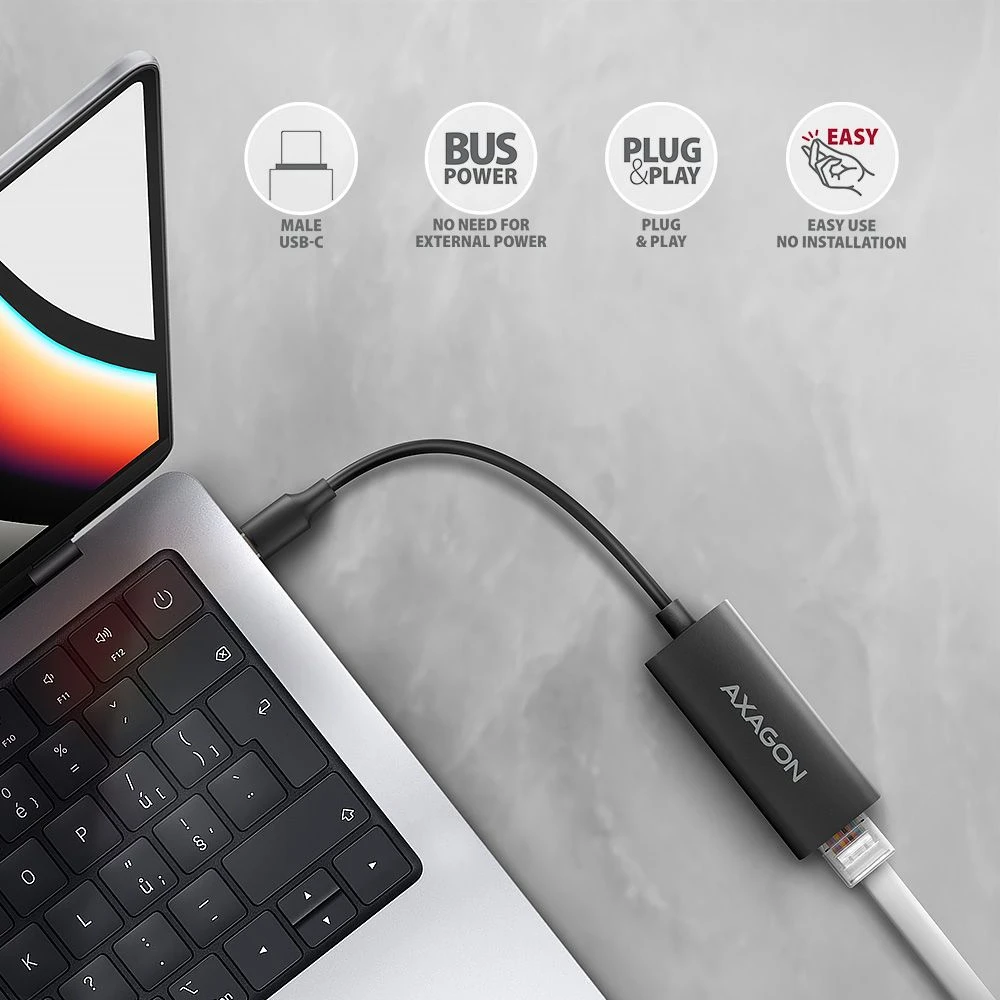

- Full Plug and Play and Hot Plug support.
- CDC-ECM support for automatic installation of drivers for different operating systems.
- USB bus power adapter power supply, no additional power supply is required.
- Two LEDs indicate network activity and connection of the adapter to the network.
- Dimensions 58 x 24 x 16 mm.
- Weight 20 g (including cable).
- 15 cm USB cable.
- With Realtek RTL8153 chipset.

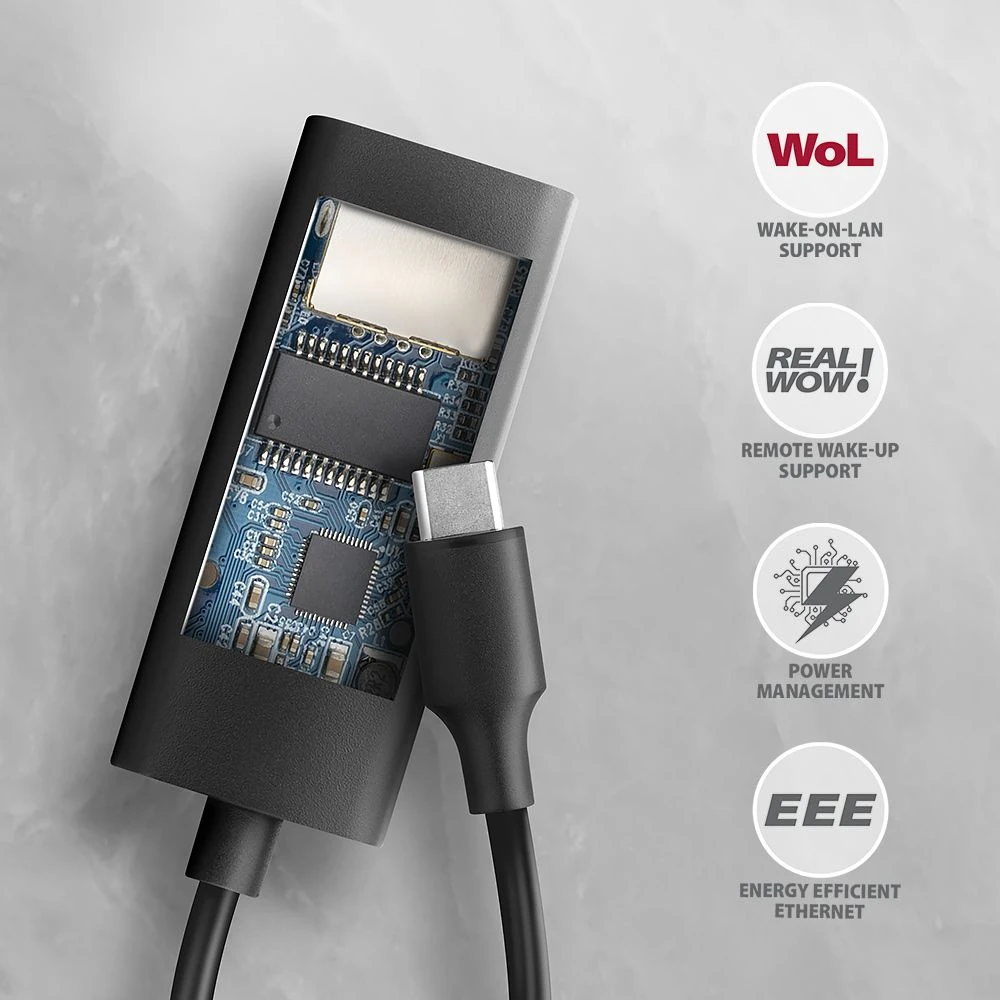

Wake-on-LAN function support in different modes:
- Magic package, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and Link Change wake-up sleep mode and remote wake-up support.
- Support for the ECMA-393 proxZzzy® for sleeping hosts standard for managing the network connection of sleeping hosts to a proxy server.
- RealWoW for Internet remote wake-up! technology support.

Advanced Power Management functions:
The adapter supports advanced Power Management that reduces losses at rest or with light network traffic. It also supports advanced energy saving when the Ethernet cable is disconnected.
- Advanced Configuration Power management Interface (ACPI) support.
- Power Management offload (ARP & NS) support.
- Microsoft Always On Always Connected (AOAC) support.
- Intel Converged Platform Power Management (CPPM) support.
- Link Power Management (LPM) support.
- Operating System-directed Power Management (OSPM) support.
- IEEE 802.3az EEE (Energy Efficient Ethernet) support.

Supported operating systems:
- Windows, macOS, Linux, Chrome OS and Android (ATTENTION - you must check with the manufacturer of the Android device whether Ethernet connection is supported).

Package contents:
- USB - Gigabit Ethernet adapter with 15 cm fixed USB-A cable,
- installation guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
- Equipped with an opening for hanging on a shop rack.
