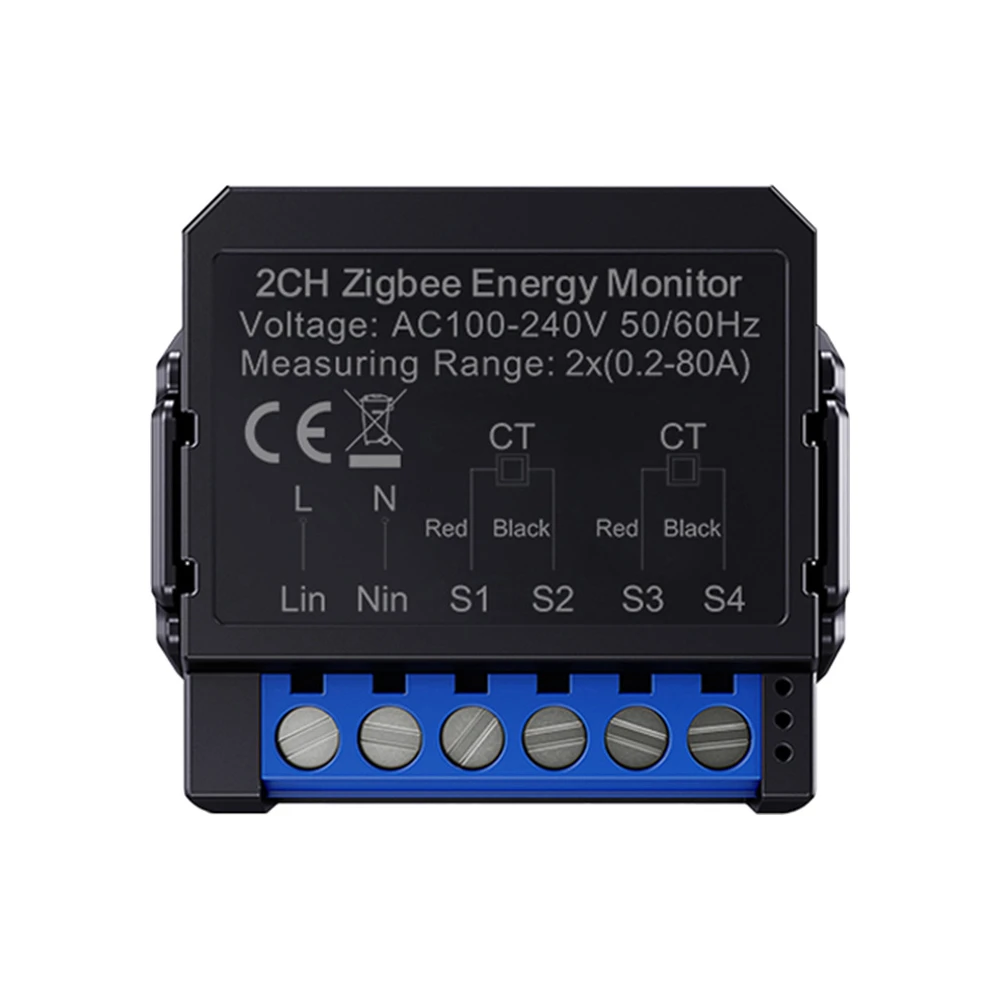

Avatto ZWPM16-2 is a modern energy consumption meter with ZigBee communication, which enables real-time monitoring of energy consumption and production. The device is designed for single-phase equipment and supports two measurement channels, so you can monitor the energy flow from both the grid and the photovoltaic equipment.

Two-way measurement - control of energy consumption and export

Thanks to its two-way measurement function, the Avatto ZWPM16-2 can distinguish between the energy taken from the grid and the energy delivered by the facility (e.g. from the PV inverter). This is ideal for photovoltaic users who want to know how much electricity they are consuming and how much is being fed back into the grid.

ZigBee connection and cooperation with application

The device connects to a home ZigBee gateway and works with the Tuya or Smart Life app. In the application, you can check the current operating parameters of the equipment: voltage, current, power, and analyze the energy consumption on a daily, monthly or annual basis. A ZigBee gateway (sold separately) is required for operation.

Easy and safe installation

The kit includes a sensor (CT) that can be installed without cutting any wires - just clip it onto the power cable. The module itself has compact dimensions, so it fits in a standard switchboard. The cable must power devices with a power greater than 10 watts for the measurement to be correct.

Performance Threshold Settings and Notifications

In the application, you can define the minimum and maximum power consumption, as well as set standby power limits. This is a useful feature that allows you to detect irregularities and automatically react to exceedances.

Description:

- Manufacturer: Avatto
- Model: ZWPM16-2
- Current measurement range: 0.2 80 A
- Operating voltage: AC 100 240 V, 50/60 Hz
- Minimum power for measurement: 10 W
- Communication: ZigBee 3.0 (ZigBee gateway required)
- Cooperation with applications: Tuya Smart / Smart Life
- Dimensions of the module: 38.8 × 38.5 mm
- CT dimensions: 40 × 25.6 mm
- Ambient temperature range: -10-50°C
