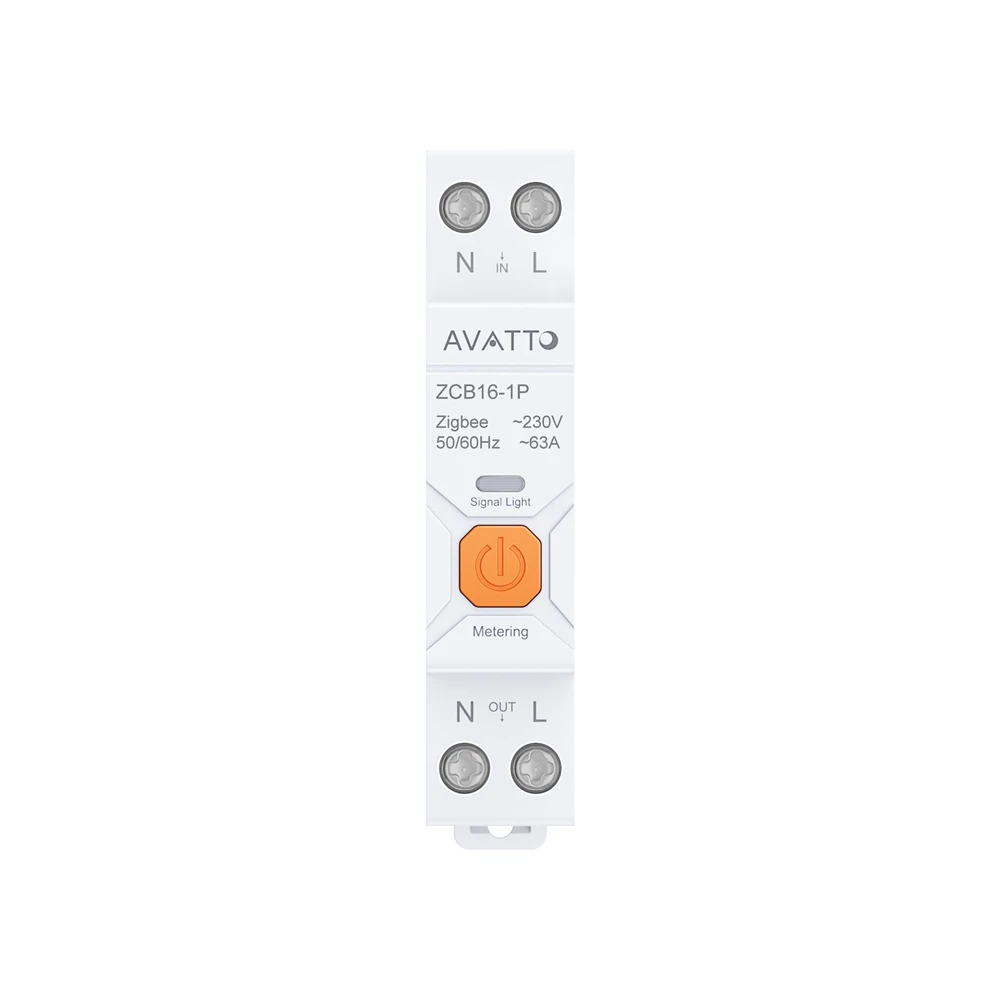

Avatto ZWCB16 is a ZigBee smart fuse that provides full control of an electrical circuit and real-time monitoring of energy consumption. The device connects to the Tuya Smart and Smart Life apps via a ZigBee gateway, allowing remote control from a smartphone or voice using Amazon Alexa and Google Assistant. Ideal for smart homes, offices and workplaces where security, energy saving and precise control are important.

Safety and accuracy

The Avatto ZWCB16 module is equipped with an advanced protection system that protects the equipment from overload, overvoltage, undervoltage and overheating. If an abnormality is detected, the device automatically cuts off the power supply, thus preventing damage to the equipment. The built-in energy measurement system (metering) provides accurate readings of current, voltage and power consumption - so you can effectively manage energy consumption and minimize operating costs.

Remote control and automation

Thanks to ZigBee 3.0 connectivity, the Avatto ZWCB16 fuse allows for remote control on and off, as well as integration with other smart home devices. In the app, you can set schedules, timers and automatic scenarios - for example, turning off the power if the power consumption is too high or at certain times of the day. The ZigBee protocol guarantees a stable connection and low latency, while not overloading the home Wi-Fi network.

Simple installation and configuration

The device can be mounted directly on a standard DIN rail, so it fits perfectly into most electrical switchboards. Simply connect the wires to the labeled L and N connectors, add the device to the ZigBee gateway and pair it with the app. LEDs indicate connection status (ON/OFF/pairing) and setup takes only a few minutes.

Energy consumption preview

The Live View function of the application allows you to monitor the current current, voltage and energy consumption in real time. The data is displayed on a daily, weekly, monthly and yearly basis, so the user can accurately analyze energy consumption and achieve savings. Remote access to statistics also enables real-time load control and immediate response to changes.

Description:

- Manufacturer: Avatto
- Model: ZWCB16-1P
- Type: ZigBee smart fuse with energy measurement
- Communication protocol: ZigBee 3.0
- Operating voltage range: 90-240 V AC
- Frequency: 50/60 Hz
- Nominal current: 1-63 A (adjustable)
- Energy measurement: Yes (measurement function)
- Control modes: Remote / Manual / Automatic
- Protection functions: Overcurrent, overvoltage, undervoltage, temperature
- LED display: Connection, operation and pairing status
- Mounting: on DIN rail (1P N-L lead-through)
- Dimensions: 18 × 76 × 27 mm
- Application support: Tuya Smart / Smart Life (ZigBee gateway required)
- Voice control: Amazon Alexa / Google Assistant
