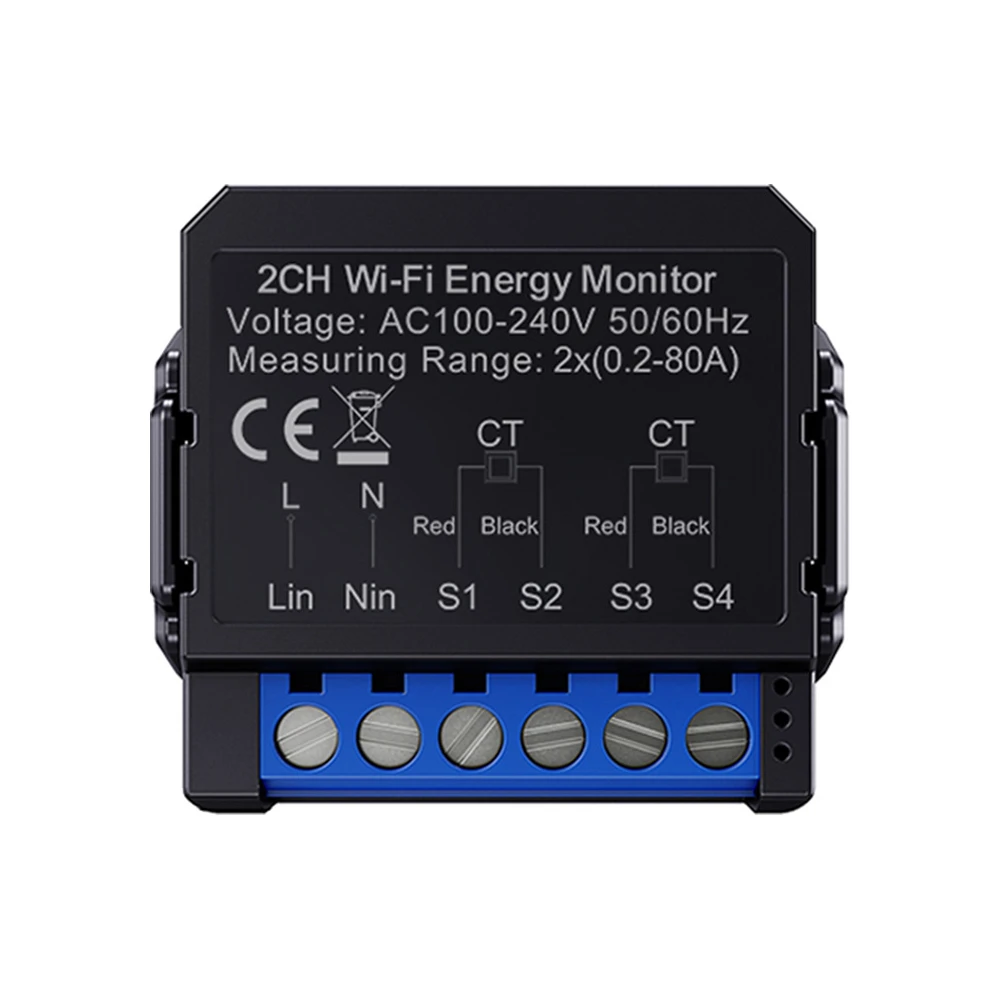

Avatto WPM16-2 is a compact and easy-to-install two-way energy meter with a Wi-Fi module that enables real-time remote measurement of energy consumption and production. It is well suited for both home installations and photovoltaic systems - it allows accurate monitoring of the energy flow from the grid and PV panels.

Two-way energy measurement

The meter supports two measurement channels and is designed to work in both directions - it can measure energy consumption from the grid (import) and energy production from photovoltaics (export). This is especially useful in installations with inverters, where control of the amount of energy output and energy used is key.

View data in the application

The device connects to your home Wi-Fi network and sends data to the Tuya or Smart Life mobile app. The user can access real-time energy consumption statistics - check voltage, current, power, and view hourly, daily, monthly, and annual consumption. It's a convenient way to check your bills and optimize the performance of your home equipment.

Safe and easy installation

The kit includes a sensor (CT) that simply clips onto the wires - no need to cut them. The installation is done without intervention in the electrical system. The module itself is compact and fits into a standard switchboard. A condition for correct measurement is a current greater than 10 W.

Customizable settings

In the application, the user can set the minimum and maximum power thresholds, which allows a quick response in case of abnormal consumption or excessive production. This is a useful feature for those who want to protect equipment or monitor the performance of PV equipment.

Description:

- Manufacturer: Avatto
- Model: WPM16-2
- Voltage: AC 100-240 V, 50/60 Hz
- Measuring range: 0.2-80 A
- Working temperature: -10 50°C
- Application: Tuya Smart, Smart Life
- Dimensions: 38.5 x 38.5 x 19 mm (meter), 40 x 25.6 mm (CT)
