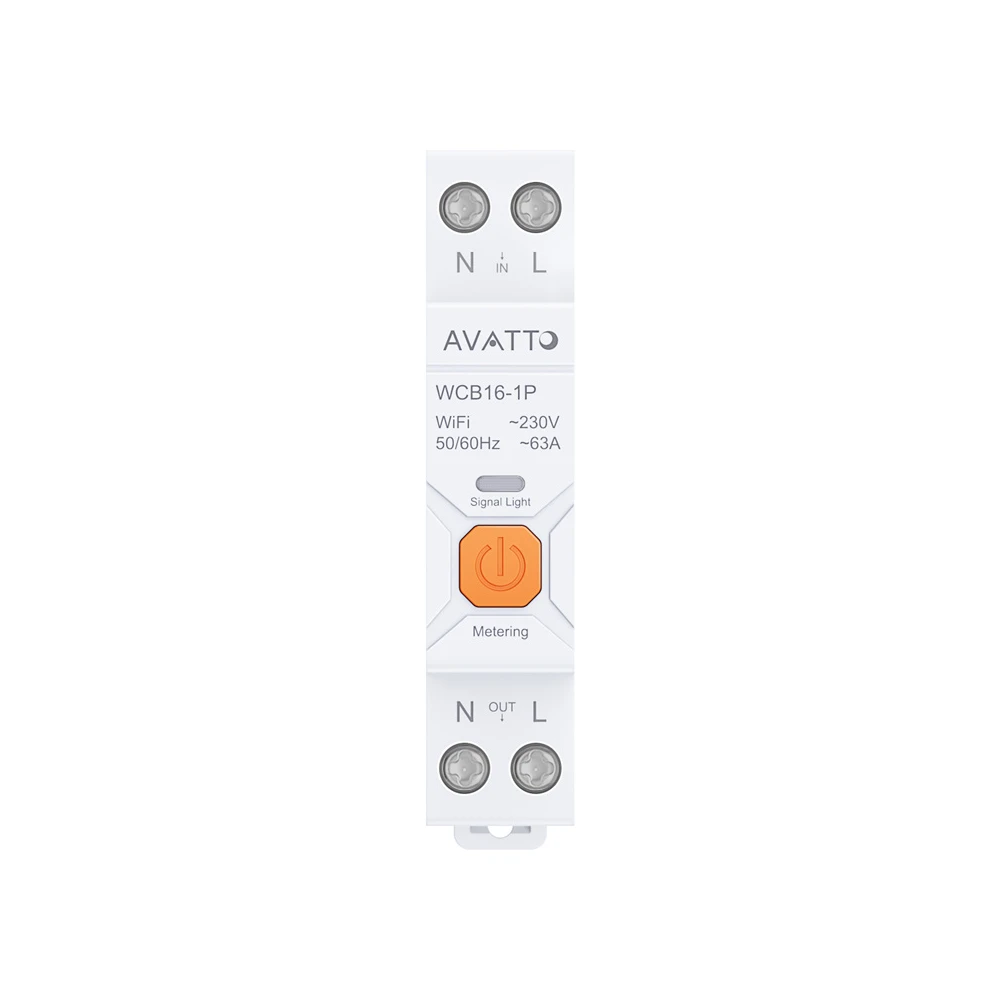

Avatto WCB16 is a Wi-Fi smart fuse that allows remote control of the electrical circuit and real-time monitoring of energy consumption. The device can be integrated with the Tuya Smart and Smart Life applications, so it can be controlled from anywhere - from a smartphone or by voice using Amazon Alexa and Google Assistant. Ideal for homes, offices and workshops where safety, savings and total energy control are important.

Safety and savings

The Avatto WCB16 module is equipped with a number of safety features that protect the equipment from overload, overheating, overvoltage and undervoltage. The intelligent system automatically cuts off the power supply in an emergency, minimizing the risk of damage to the equipment. In addition, the energy measurement (metering) function allows accurate monitoring of current, voltage and power consumption, which helps to optimize energy consumption and reduce electricity bills.

Remote control and scheduling

With 2.4 GHz Wi-Fi communication, users can turn the fuse on and off remotely from the app. It is also possible to set automatic schedules, time modes or countdowns. The system allows you to create scenes in which the fuse reacts to other smart devices - for example, it turns off the power at certain times or after exceeding a certain level of consumption. It is a convenient and modern energy management tool.

Easy installation and configuration

Installation of the Avatto WCB16 is quick and hassle-free - the device can be mounted directly on a DIN rail, and its compact design fits into standard switch cabinets. After connecting the wires, you just need to start the application, turn on the module and add it to the network. The built-in LED indicates the connection status (ON/OFF/pairing) and the setup takes only a few minutes.

View consumption in real time

Live View allows the user to view the current, voltage and power of the load. The data can be analyzed on a daily, weekly, monthly and yearly basis, so you can better understand the structure of energy consumption and plan for optimization. Consumption information can be checked remotely, making the Avatto WCB16 an excellent tool for smart energy monitoring.

Description:

- Manufacturer: Avatto
- Model: WCB16-1P
- Type: Wi-Fi smart fuse with energy measurement
- Communication protocol: Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
- Operating voltage range: 90 240 V AC
- Frequency: 50/60 Hz
- Rated current up to: 63 A
- Energy measurement: Yes (measurement function)
- Control modes: Remote control / Manual / Scheduling
- Protection functions: Overcurrent, overvoltage, undervoltage, temperature
- LED display: Operation, connection and pairing status
- Mounting: on DIN rail (1P N-L lead-through)
- Dimensions: 18 × 76 × 27 mm
- Application support: Tuya Smart / Smart Life
- Voice control: Amazon Alexa / Google Assistant
