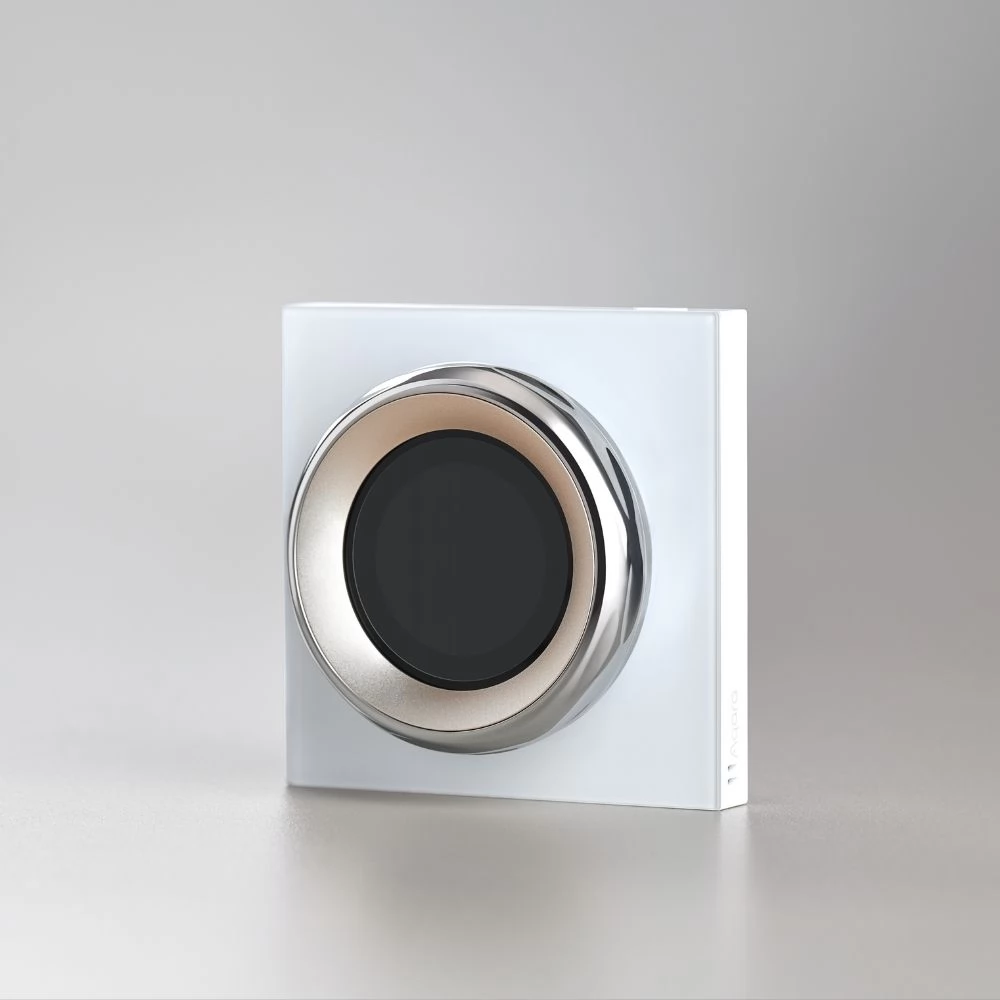

AQARA Touchscreen Dial V1 EU forgótárcsás touch screen clever kapcsoló/vezérlő

The Touchscreen Dial V1 raises the potential of smart fittings to a new level. It offers intuitive control for homes to make everyday life more colorful. The manufacturer provided the device with a 1.32-inch circular touch screen and a rotary dial that provides haptic feedback for easier and more precise use. Thanks to its built-in temperature and humidity sensor and proximity sensor, Aqara is also suitable for central control or automation of thermostats or other smart home devices. The device supports Wi-Fi, Zigbee and Bluetooth protocols, so it can be seamlessly connected to third-party smart home ecosystems such as HomeKit, Google Home, Alexa, or Matter via the platforms.

Main Features

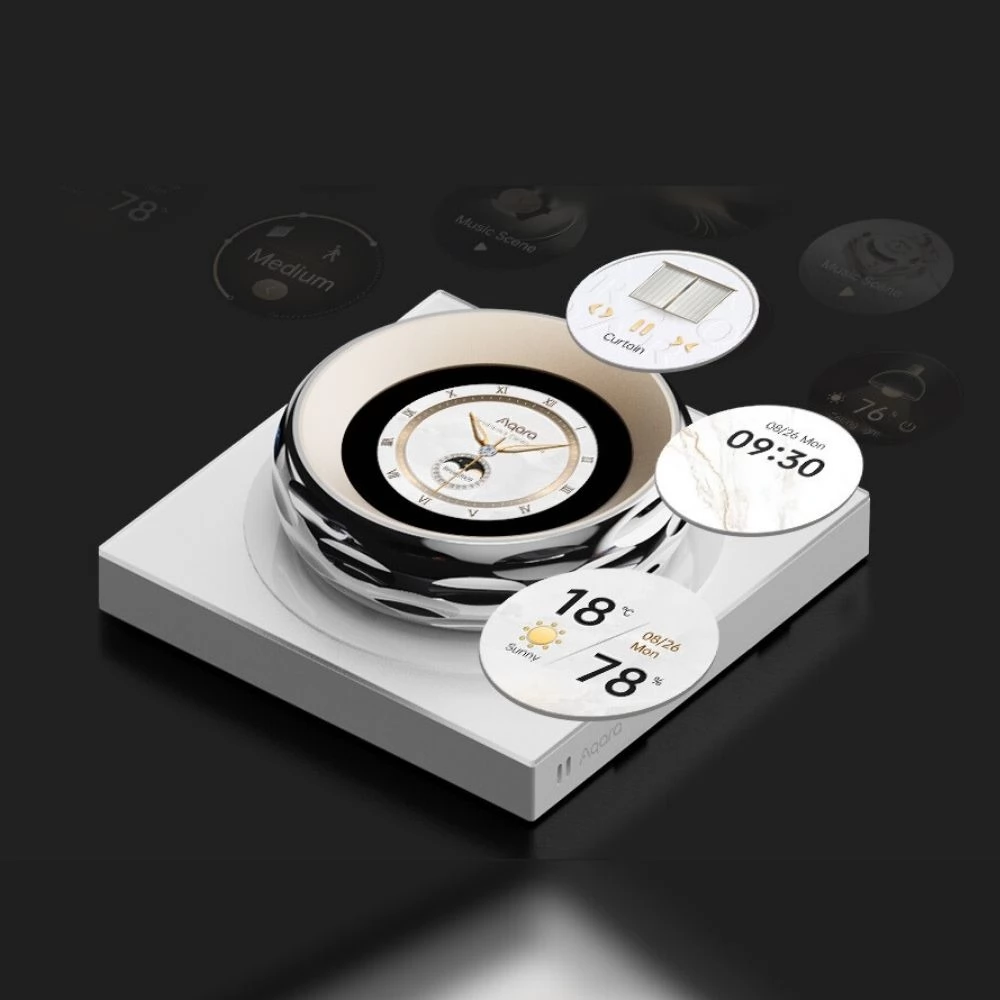

- Screen Themes: Choose the screen theme that best suits your environment to give your smart device a personalized look.
- Control your smart devices from one place: In the default setting, the device includes two built-in and six wireless switches that can be used to create unique automation scenes and device controls.
- Dial with haptic feedback: The rotary dial enables easy, precise and detailed adjustment with haptic feedback, so navigating the menu items has never been so fun and intuitive.
- Temperature and humidity detection: The built-in sensor provides real-time data that can be synchronized with the Aqara system to create advanced automations.
- Automatic activation with proximity detection: Using the millimeter-wave radar and optical sensor, the display turns on automatically when you approach it, thereby providing an even more comfortable user experience.
- Customizable display: The LCD touch screen can display unique screensavers, such as weather, date or indoor conditions, in a personalized style.

Product Features

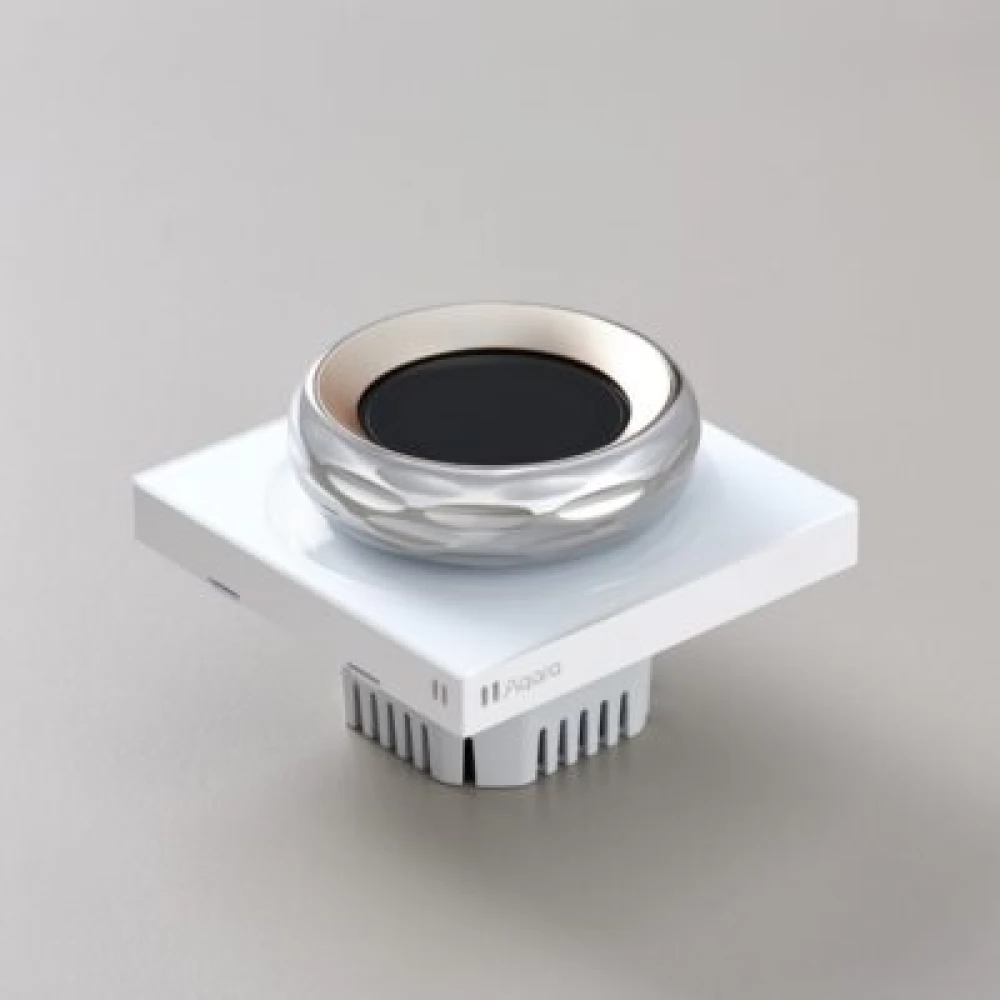

- Dimensions: 86 x 86 x 62.1 mm (3.39 x 3.39 x 2.45 inches)
- Material: AG glass, metal turntable
- Color: Moon white
- Control options: Two-circuit light switch
- Relay specification: HF182

Screen:

- Type: LCD, Multi-point touch screen
- Resolution: 360 x 360
- Size: 1.32 inches

Communication protocols:

- Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4GHz and 5GHz
- Zigbee: IEEE 802.15.4
- Bluetooth

Sensors:

- Temperature humidity sensor
- Millimeter wave radar
- Optical proximity sensor

Electrical data: 200-240V AC, 50/60 Hz, max. 8 A (resistance load)

Integration and Compatibility

Touchscreen Dial V1 is compatible with the following platforms:

- Apple HomeKit
- Google Home
- Amazon Alexa
- Matter standard
- It can also communicate with third-party devices via Wi-Fi or Zigbee connection, which facilitates integration into smart home systems.

Description:

- Manufacturer: Aqara
- Factory article number: DS-K01D
- Color: White

Sound, image, sensor parameters

- Sensor: Built-in thermometer and humidity sensor

Installation / operation

- Operating power supply: 200V-240V AC
- Operating ambient temperature: 10°C-40°C
- Operating ambient humidity: 5% 95% RH
- IP protection: IP20

Controlled (/measured) circuit

- Dimming / Brightness control: No, but it can control a dimmer
- Rated current: 8A / circuit

Electrical properties

- Local / manual switching: Via touch screen
- Input for external switch: No
- Alternative switching / crossover switching: Wireless Zigbee switches are suitable for wireless alternative switching (via a Zigbee gateway)

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: Yes
- Zigbee: Yes
- Thread: No
- Z-Wave: No
- RF / radio control: No
- Bluetooth: Yes

Remote control, smart control

- Direct (local) remote control: No
- Manufacturer smartphone app: Yes, Aqara app

Other

- Matter standard compatible: Yes
- Size: 86 x 86 x 62.1 mm
- Communication protocols: Bluetooth, Wi-Fi, ZigBee
- Number of output circuits: 2
- Product type: Control panel, light switch
- Dimensions: 20.0 × 5.8 × 11.2 cm
