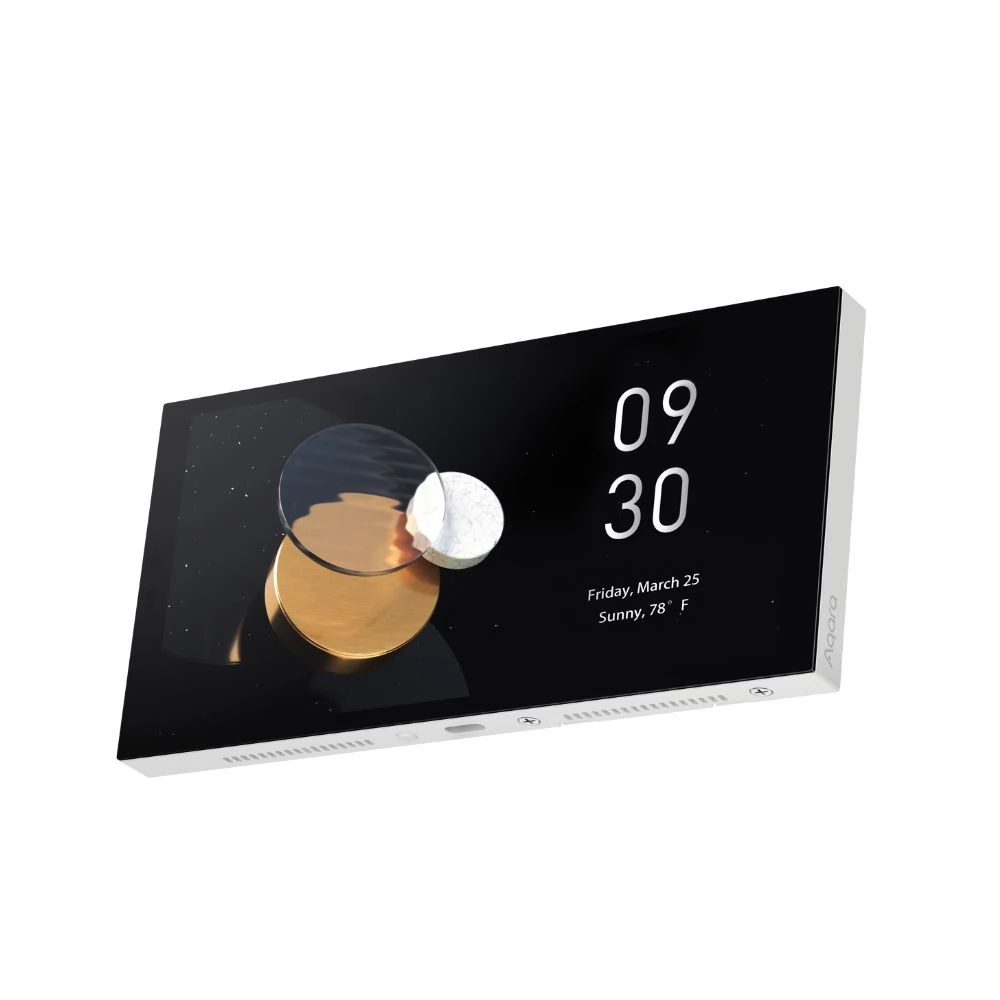

The Aqara S1 Plus Panel Hub EU is an innovative and stylish solution for smart home wall control that combines the functionality of wall switches with the options of a premium control panel. The device has two built-in relays and six wireless switch functions that can simultaneously control Aqara devices and automated scenes. Its 6.9-inch, high-resolution touch screen allows precise fine-tuning of lighting color temperature, RGBIC settings, shutter position and thermostat temperatures. In addition, the live video image of Aqara doorbells and cameras can be viewed on the display, enabling the reception of video images and immediate communication. The device supports Wi-Fi, Zigbee and Bluetooth protocols, so it can be seamlessly connected to third-party smart home ecosystems such as HomeKit, Google Home, Alexa, or Matter via the platforms.

Main Features

- All-in-one control panel: The device includes two relays and six wireless switch functions, which can be used to control Aqara devices from a single panel. The display offers an automatically optimized control interface based on the devices in your home. It can be done quickly and easily by adjusting the color temperature of the lighting (CCT/RGBIC) or the position of the blinds.
- Matter Bridge and Zigbee 3.0 Hub: Aqara S1 Plus Panel Hub EU also functions as a high-capacity Zigbee hub that supports 2.4GHz and 5GHz dual-band Wi-Fi connection. Matter Bridge seamlessly connects to Apple Home, Alexa, Google Home and other third-party systems.
- Camera streaming: The video of the Aqara G4 doorbell and other Aqara cameras can be streamed directly on the display. When visitors arrive, you can see a live image, have two-way communication, or open the Aqara smart locks directly from the display.
- Customizable user interfaces: Users can directly copy user interfaces from the Aqara Home application to the panel display. Up to 10 custom panels can be configured, each with up to 60 device or scene cards. This ensures flexible and personalized control.
- Energy consumption monitoring: The device offers real-time energy consumption reports (broken down daily/weekly/monthly). This data helps to optimize energy use and increase sustainability.
- Proximity sensor and automatic activation: The display turns on automatically when someone approaches it (up to a distance of 2.5 meters). The brightness of the display can be adjusted automatically, reducing light pollution and ensuring optimal visibility.

Specifications

- Product name: Panel Hub S1 Plus EU
- Model: MP-K03D
- Dimensions: 172 × 86 × 42.2 mm
- Wireless protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac (2.4GHz and 5GHz), Zigbee IEEE 802.15.4, Bluetooth
- Resolution: 1440 × 720
- Input voltage: 200–240 V, 50/60 Hz, max. 8 A (resistance load)
- USB-C connection: 5V, 2A
- Operating temperature: -10°C 40°C (14°F 104°F)
- Operating humidity: 0-95% relative humidity (non-condensing)

Screen:

- Type: LCD, Multi-point touch screen
- Resolution: 360 x 360
- Size: 1.32 inches

Communication protocols:

- Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4GHz and 5GHz
- Zigbee: IEEE 802.15.4
- Bluetooth
