Main use:

Cold starting provides a temporary power supply if the power supply is lost. Energy Measuring Energy Conscious Users Displays the KWH value of current consumption. Green mode is a patented mode of operation that avoids electrical components that are not in use in good power supply, thus ensuring very high functional efficiency without having to give up any protection. High online efficiency reduces utility costs and produces less heat. Intuitive LCD interface provides transparent and accurate information in multiple languages ​​and allows UPS to configure UPS with easy-to-use navigation keys. Predictive forecast The date of replacement of batteries (year, month), which is recommended based on the long -term maintenance plan, displays the battery exchange date. Clean Sinus Wave Output The battery simulates the service provider entry to ensure the highest degree of compatibility for servers and sensitive electronic devices with an active power factor corrective power supply. Single attachment output group output connector group that can be controlled independently of UPS, allowing for separate restarts of frozen devices, sequential rising and non-critical consumers. SmartSlot with UPS customization with treatment cards. Heat compensation battery charge, based on the actual temperature of the battery, extends the battery life by controlling the charging voltage.

Main qualities:

- Output power capacity: 700Watt / 1.0 KVA
- Max. Configurable Power (in Watt): 700Watt / 1.0 KVA
- Nominal output voltage: 230V
- Output Frequency (synchronized with main power supply network): 47-53 Hz 50 Hz for rated value, 57-63 Hz 60 Hz nominal value
- Topology: line interactive
- Type of waveform is a sinus wave

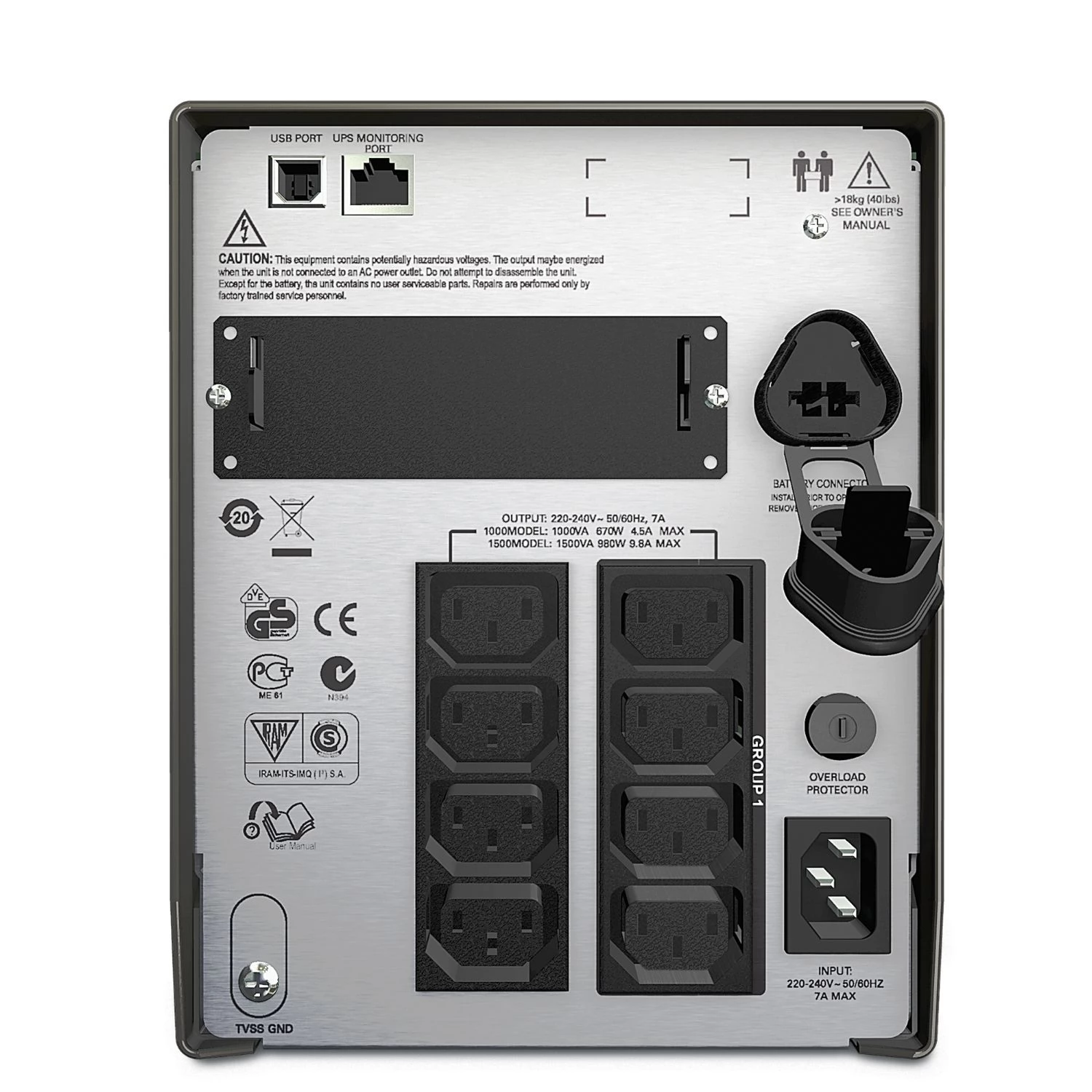

- Output connections: (8) IEC 320 C13 (battery reserve) (2) IEC Jumpers (battery spare)
- Nominal input voltage: 230V
- Input frequency: 50/60 Hz +/3 Hz (automatic detection)
- Type of input connection: IEC-320 C14
- Input voltage range for main operations: 160 286V
- Battery Type: Stamped, non-maintenance-free lead-acid battery, suspended electrolytte: leak-free
- Typical recharge time: 3 hours
- Replacement battery: RBC6
- Expected battery life (year): 3 5
-Battery capacity was expressed in amp hours: 264
- Control panel: Multifunction Liquid Crystal Display (LCD) with Status Signals and Controller Function
- Alarm Functions: Equal Alarm When Battery: Distinctive "Batter
- Interface Port: RJ-45 Serial, SmartSlot, USB
