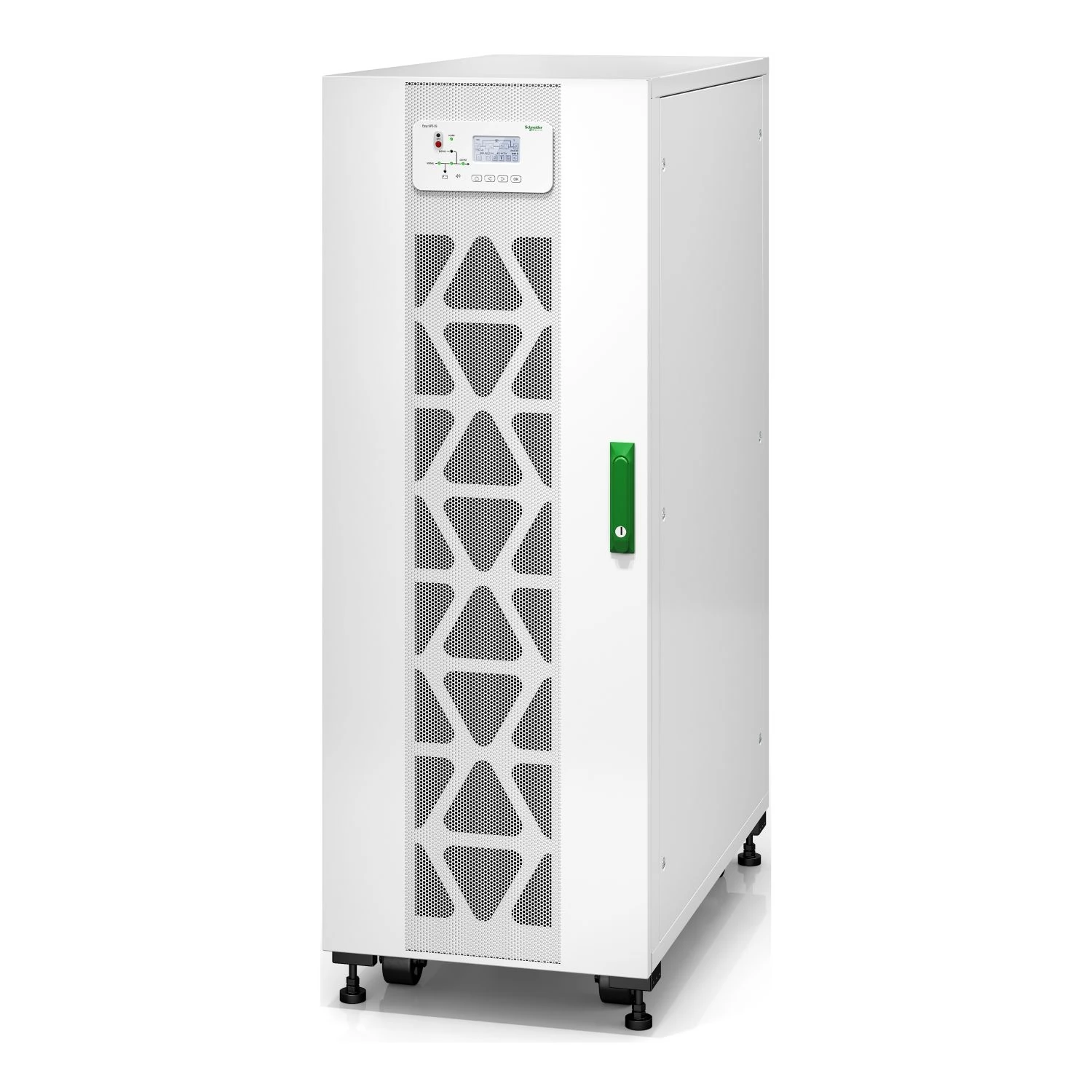

The Easy UPS 3S 40 KVA is a reliable three-phase uninterruptible power supply (UPS) that operates with a voltage of 400 V and can be connected to internal batteries. It has effective protection against power outages and network fluctuations, so it is ideal for industrial and business environments. Its compact design and easy installation facilitate commissioning and maintenance.

Properties:

Input and output voltage, frequency, output waveform:
- Input voltage: 400 V three -phase (supported: 380 V, 415 V)
- Input frequency: 45-65 Hz
- Output voltage: 400 V three -phase (supported: 380 V, 415 V)
- Output frequency: 50 Hz or 60 Hz, synchronized to network
- Output waveform: pure sinus wave

Performance:
- Nominal power: 40 KVA / 40 kW

Charging and operating time:

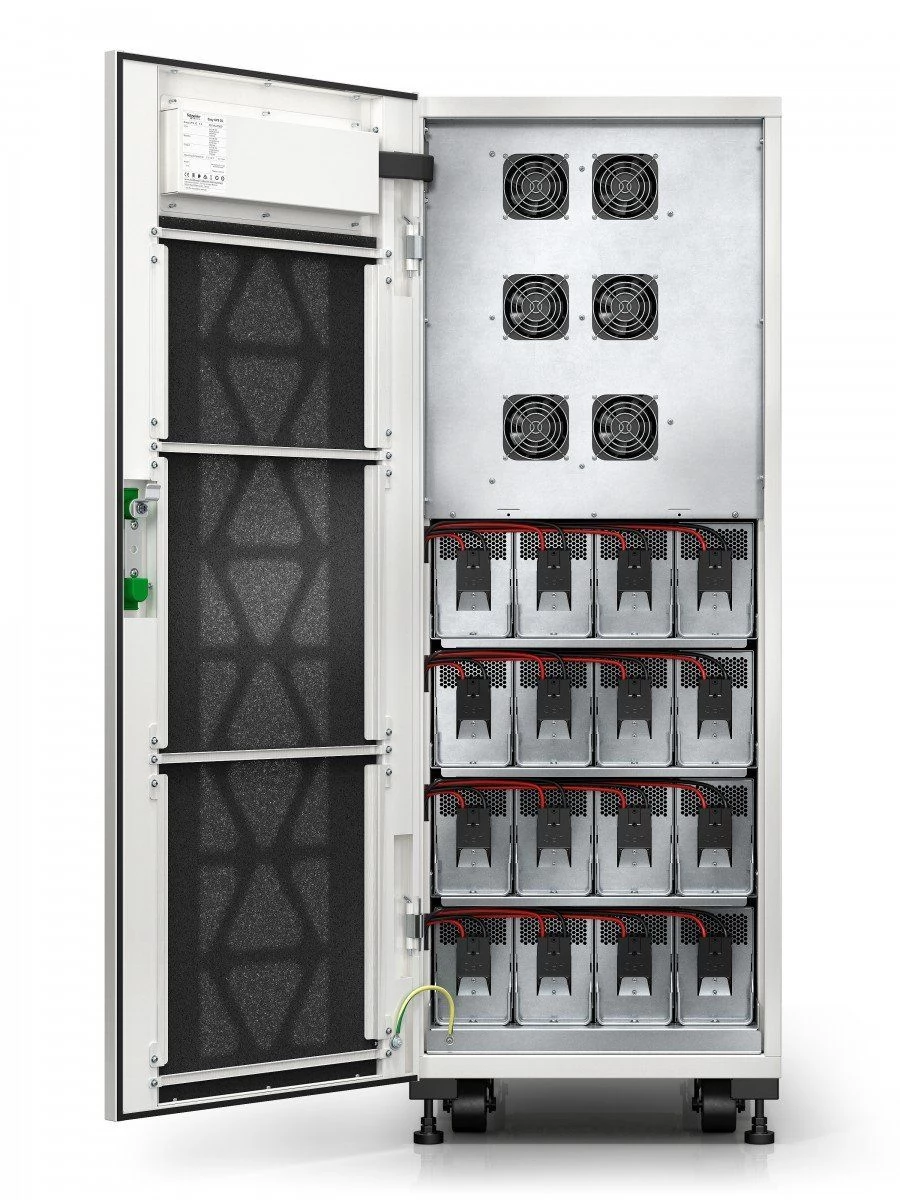

- The device is designed for internal batteries but is transported without batteries, so the operating time depends on the battery used.

Network connections:
- USB
- Rs-232

Other information:
- IP Protection Level: IP20
- LCD display
- Size (h x s x m): 996mm x 500mm x 1400mm
- Color: White (RAL 9003)
